4 + 2 Gigabit Ports PoE+ Switch, 72W. | ||
|
| |
| Interface | |
|---|---|
| Downlink Ports | 4 x 10/100/1000Mbps |
| Uplink Ports | 2 x 10/100/1000Mbps |
| SFP Ports | No |
| PoE | |
| PoE Ports | 4 (Downlink Ports) |
| PoE Standard | IEEE802.3af/at PoE |
| PoE Total Power | 72W |
| Average Power Per Channel | 18W |
| Maximum Power Per Channel | 30W |
| Data Processing | |
| Backbone Bandwidth | 12Gbps |
| Buffer Size | 2Mb |
| MAC Address Table | 2K |
| VLAN | No |
| Network Media | |
| EIA/TIA-568 | 100Ω STP (Maximum 100m) |
| 10BASE-T | UTP Category 3, 4, 5 Cable (Maximum 100m) |
| 100BASE-TX | UTP Category 5, 5e Cable (Maximum 100m) |
| 1000BASE-T | UTP Category 5e, 6, 7 Cable (Maximum 100m) |
| Special | |
| CCTV Mode | Independent for each dowling port (By DIP Switch) |
| Surge Protector | Built-In |
| Wall Bracket | Optional |
| Rack Bracket | No |
| K-Slot (Anti Theft) | Available |
| Power | |
| PoE Status Monitor | No |
| Power Supply | 54v2,2A |
| Others | |
| Power Consumption | PoE On: 65W Max. / PoE Off: 5W Max. |
| Fan | No |
| Dimensions | 160x93x28mm |
| Weight | 1.32kg |
| Operating Temperature | ~0°C-40°C |

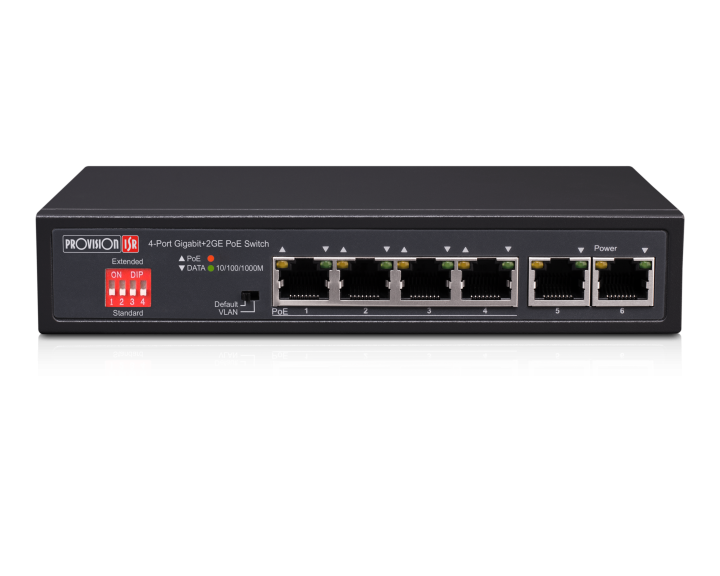

POES-0472GC+2G
4 + 2 Gigabit Ports PoE+ Switch, 72W.
PRODUCT SHEET
- Manufacturer: Provision ISR
- Product Code: 22-080
- EAN: 0619317411074
- In Stock 18pcs
- Available 17pcs
Tags: POES-0472GC+2G
