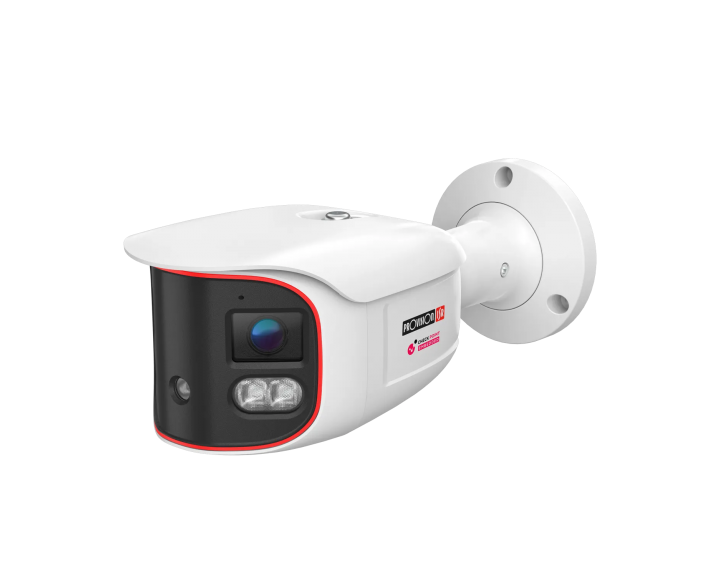

8MP 180° Panoramic Bullet Camera,
With Hybrid LED, Check Point Protection,
DDA 2nd Generation, 2x2.8mm (180°)
Lens, 30M IR + 20M White LED.

KEY FEATURES

Sensor: 2 x 1/2.7″ CMOS.
Resolution: 4640×1760 20FPS (8MP).
Lens: 2.8mm (180°) x2 ICR + 24/7 Full-Color Day Mode.
Illumination: 30m (2 High-Power IR LEDs) +
20m (2 High-Power White LEDs) + Red/Blue Strobe Light.
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
Quantum IoT Nano agent by Check Point™.
General Analytics: Camera Tampering.
Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection.
AI (Face Detection): 10 Faces per frame.
AI: Heatmap.
DDA2: Advanced Object Classification.
Digital WDR, BLC, HLC, ROI.
SD Card: Event/Schedule Record (Up to 256GB).
Alarm in + Alarm out.
2 x Built-in Microphone + Built In Speaker + Audio Input / Output.
ONVIF: Profile M/T/S/G.
Water Proof: IP66.
Weight: ~950g.
Power: DC12V/~750mA / PoE/~11W.

FUNCTIONS

This Turret style Panoramic Network Camera offers a sweeping 180° view with full-color capture, even in low-light conditions.
Equipped with dual lenses, this camera ensures a seamless panoramic image, reducing blind spots and enhancing coverage.
The build in Hybrid illumination of both IR and White LED which makes it perfect for monitoring both day and night and advanced
DDA2 analytics together with onboard Active Deterrance make this model a perfect solution to cover most areas.
The advanced technology in this camera allows it to replace multiple traditional fixed-focus cameras,
delivering comprehensive security with fewer devices.

Artificial Intelligence by Provision-ISR

Humans

2-Wheels

4-Wheels

Detect. Distinguish. Alert.

DDA™ VIDEO ANALYTICS allows the system to distinguish between humans, 4-wheel vehicles, and 2-wheel vehicles based on smart object recognition technology. Thanks to this technology, the system triggers alarms or sends push noti-fications only when the desired object is detected and, by doing so, reduces annoying false alarms caused by shad-ows, light changes, shaking trees, animals,Etc.

DDA™ Line Crossing

DDA™ Sterile Area

DDA™ People/Vehicle Counting

The user draws a line in the scene and sets the crossing direction
and permissions—for example, Pedestrian only street. If vehicles
are not allowed to enter the road, the system will generate an
alarm only when a vehicle crosses the line. No alarm will be
generated if a human crosses the line.

The user draws an area in the scene and sets access permissions—
for example, No-Parking Zone. If vehicles are not allowed to access
the “No-Parking Area, “ but people are, the system will generate
an alarm only when a vehicle enters the area. In addition, the user
can configure if entering/exiting the area will trigger an alarm.

The user places the camera at a gate entrance/exit for
real-time monitoring—for example, Vehicle Maximum Limit.
The system will count the number of vehicles entering and exiting
the area and alert when the number reaches the maximum limit.

SPECIFICATIONS
3rd Party Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import--Table Protection, Dynamic-Memory Protection.
NDAA-Compliance
NDAA-Compliance	Yes
Video
Image Sensor	2 x 1/2.7" CMOS
Effective Pixels	4640×1760
Electronic Shutter	1/3s ~ 1/100000s
Day & Night	ICR + 24/7 Full-Color Day Mode
Min. Illumination	Day: 0.0032Lux Night: 0lux with IR on
Audio
Audio Compression	G.711A/G.711U
Communication	Two-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness Contrast Adjustable
Image Enhancement	Digital WDR, BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Event and Analytics
Analytics	General Analytics: Camera Tampering Human & Vehicle Recogition: Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection	Yes
Metadata	Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model 2-Wheel: Type
Compression
Resolution	8MP (4640×1760) / 6MP (3632×1632) / 4MP (3200×1200) / 2MP (2304×864) / 2048×768 / 1600×608 / 1200×448 / 960×368 / 640×240
Frame Rate	1-25/30FPS
Video Compression	H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream	Master Stream: 8MP (4640×1760) / 6MP (3632×1632) / 4MP (3200×1200) / 2MP (2304×864) (1~30fps) Substream: 2MP (2048×768) / 1MP (1600×608) / 0.5MP (1200×448) (1~30fps) Third Stream: 1200×448/960×368/640×240 (1~30fps)
Bit rate	128Kbps ~ 8Mbps@H.265 / 256Kbps ~ 10Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	2 x 2.8mm (180°)
Iris	Fixed Iris
Lens Mount	M12
DRI Distance	Detect: 60m Recognize: 12m Identify: 6m
Network
User Access	Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, RTP, Multicast, UPnP, Email, FTP, FTPS, HTTPS, QoS, P2P, HTTP POST, Auto Report
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	10/100Mbps
ONVIF	Profile M/T/S/G
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	2 x Built-in Microphone + Built In Speaker + Audio Input / Output
Alarm	Alarm in + Alarm out
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand	No
Power	DC Socket
Analog Video Output	No
Housing
PoE	Yes
Illumination	30m (2 High-Power IR LEDs) 20m (2 High-Power White LEDs) Red/Blue Strobe Light
Power Supply	DC12V/~750mA / PoE/~11W
Protection Rate	Water Proof: IP66
Work Environment	-30°C~60°C, 10%~90%Humidity
Bracket	3-Axis Bracket
Dimensions	225.9x102.3x85.8mm
Weight (gross)	~950g
Återställningsknapp	Yes
Junction Box	PR-JB14IP66 - PR-JB14IP64
