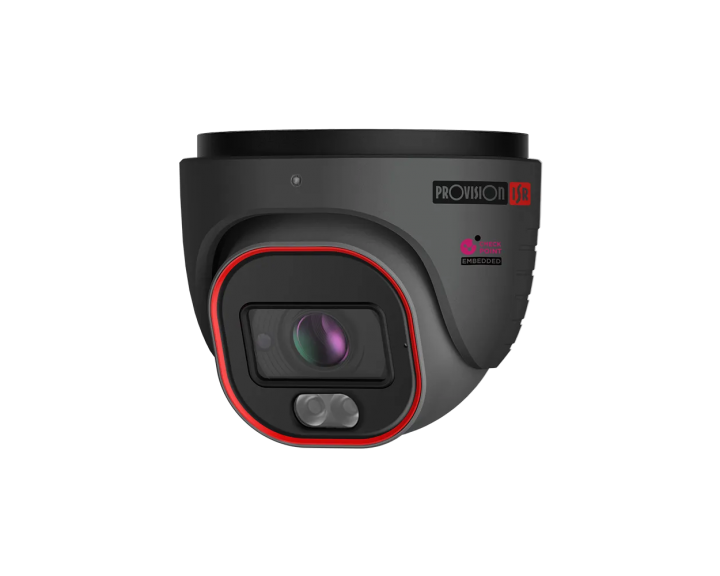

4MP Vandal Proof Gray Turret Camera,
With Active Deterrence, Hybrid LED,
Check Point Protection, DDA 2nd Generation,
2.8-12mm (95°-32°) Motorized Lens, 40M IR.

KEY FEATURES

Sensor: 1/3″ CMOS (16:9).
Resolution: 2592X1520/25FPS (4MP).
Lens: 2.8-12mm MVF with Auto Focus (95°-32°)
ICR + 24/7 Full-• Lens: 2.8-12mm MVF with
Auto Focus (95°-32°) ICR + 24/7 Full Color Day Mode.
Illumination: 40m (1 High-Power IR LED) + 40m
(1 High-Power White LEDs) + Red/Blue Strobe Lights.
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
Quantum IoT Nano agent by Check Point™.
DDA 2nd generation:
Distinguishes gender, age, clothing color and accessories on people. Brand, car type and color of cars. Bicycle, Motorcycle, E-bike, Tricycle or unknown.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing, DDA Object Counting.
AI (Face Detection): 10 Faces per frame.
AI: Heatmap.
True WDR (120dB), BLC, HLC, ROI.
SD Card Support (Up to 256GB).
Built-in Speaker And Microphone + Audio In + Audio Out.
Alarm In + Alarm Out.
ONVIF: Profile T/S/G.
Water Proof: IP66.
Weight: ~750g.
Power: DC12V/~850mA / PoE/~12.5W.

FUNCTIONS

Active deterrence cameras are designed to deter unwanted visitors by activating visual and audio alerts. Equipped with a 2.8-12mm motorized lens,
this 4MP Dome/Turret camera is intended for medium-distance surveillance (up to 40m) in indoor and outdoor scenarios. This model complies with
NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides
an advanced threat prevention layer against the common attack vectors at runtime. The camera offers broad possibilities for Analytics, from Face
Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object
counting, and investigate specifics such as age, color, gender, vehicle brand and much more. With various detection rules and triggers, the
DH-340ADN-MVF-V4 camera is here to end false alarms.

"AI" Video Analytics DDA 2nd Generation

Human Recognition
Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..

Vehicle Recognition
Once the vehicle is detected, you can have a complete description, including the brand, type, and color!

Provision-ISR Artiﬁcial Intelligence

The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artiﬁcial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reﬂective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artiﬁcial Intelligence video analytics functions:

DDA Analytics

Face Detection

Face Recognition

Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notiﬁcations only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.

The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.

Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.

SPECIFICATIONS
3rd Party Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import--Table Protection, Dynamic-Memory Protection.
NDAA-Compliance
NDAA-Compliance	Yes
Video
Image Sensor	1/3" CMOS (16:9)
Effective Pixels	2592x1520
Electronic Shutter	1/3s ~ 1/100000s
Day & Night	ICR + 24/7 Full-Color Day Mode
Min. Illumination	0.02lux @F1.4, AGC på) 0lux with IR on
Audio
Audio Compression	G.711A/G.711U
Communication	Two-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Event and Analytics
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection	Yes
Compression
Resolution	4MP/2K/3MP/2MP/D1/QVGA/CIF
Frame Rate	1-25/30FPS
Video Compression	H.265+/H.264+/H.265/H.264/MJPEG**
Multi-Stream	Master Stream: 4MP(2592x1520)/2K(2560x1440)/3MP/2MP/1MP Substream: 1MP/QVGA/D1/CIF Third Stream QVGA/D1/CIF(1~30fps))
Bit rate	128Kbps~7Mbps@H.265/256Kbps~8Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	2.8-12mm MVF with Auto Focus (95°-32°)
Iris	DC Iris
Lens Mount	Ø14
DRI Distance	Detect 2.8~12mm(W): 60.09m - 2.8~12mm(T): 175.72m Recognize 2.8~12mm(W): 12.01m - 2.8~12mm(T): 35.14m Identify 2.8~12mm(W): 6.00m - 2.8~12mm(T): 17.57m
Network
User Access	Multi-stream real-time transmission
Network Protocol	SNMP
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	100Mbps
ONVIF	Profile T/S/G
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	Built-in Speaker And Microphone + Audio In + Audio Out
Alarm	Alarm In + Alarm Out
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand	No
Power	DC Socket
Analog Video Output	No
Housing
PoE	Yes
Illumination	40m (1 High-Powe IR-LED) 40m (1 High-Powe White-LED) Red/Blue Strobe Lights
Power Supply	DC12V/~850mA / PoE/~12.5W
Protection Rate	Water Proof: IP66
Work Environment	-30°C~60°C, 10%~90% Humidity
Bracket	3-Axis Bracket
Dimensions	Ø113mm×99.6mm
Weight (gross)	~750g
Återställningsknapp	Yes
Junction Box	PR-DJ14IP66 - PR-JB14IP66 - PR-JB14IP64
