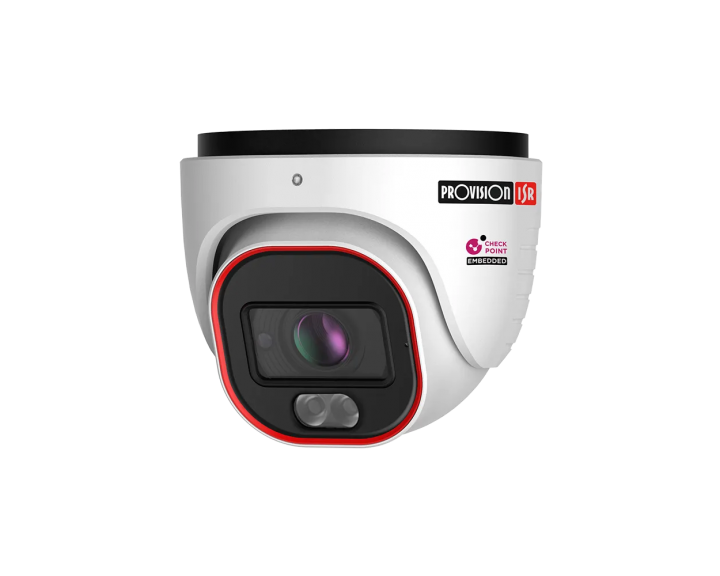

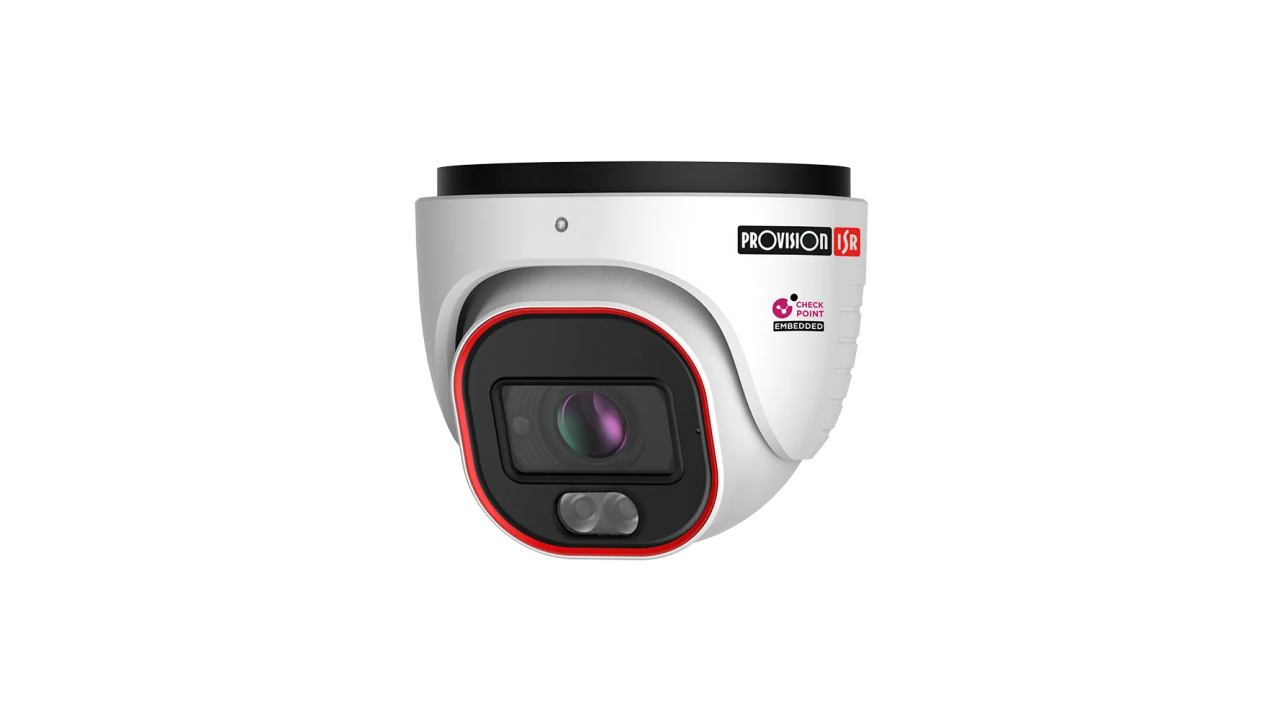

4MP Vandal Proof Turret Camera,
With Hybrid LED, Check Point Protection,
DDA 1nd Generation, 2.8-12mm (89-31°)
Motorized Lens, 40M IR + 30M White LED.

KEY FEATURES

Sensor: 1/3″ CMOS (16:9).
Resolution: 2592X1520/25FPS (4MP).
Lens: 2.8-12mm MVF with Auto Focus (89-31°)
ICR + 24/7 Full-Color Day Mode.
Illumination: 40m (2 High-Power IR LED) + 30m
(1 High-Power White LEDs)
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
Quantum IoT Nano agent by Check Point™.
General Analytics: Camera Tampering, Item Monitoring.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing.
True WDR (120dB), BLC, HLC, ROI.
SD Card Support (Up to 256GB).
Built-in Microphone + Audio In.
ONVIF: Profile M/T/S/G.
Water Proof: IP67.
Weight: ~730g.
Power: DC12V/~600mA / PoE/~9W.

FUNCTIONS

Equipped with a 2.8-12mm motorized lens, this 4MP Dome/ Turret camera is designed for long-distance surveillance (up to 40m) in
indoor and outdoor scenarios. With its hybrid capability, the white LED will enlighten the scene when humans being detected for
full color image even in dark scenarios. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform
human and vehicle recognition. With various detection rules and triggers. This model complies with NDAA demands and ensures
your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced
threat prevention layer against the common attack vectors at runtime. With its outstanding performance, reliability, and affordable
price, the DH-340IPSN-MVF camera is the perfect solution for any simple IP installation.

Artificial Intelligence by Provision-ISR

Humans

2-Wheels

4-Wheels

Detect. Distinguish. Alert.

DDA™ VIDEO ANALYTICS allows the system to distinguish between humans, 4-wheel vehicles, and 2-wheel vehicles based on smart object recognition technology. Thanks to this technology, the system triggers alarms or sends push noti-fications only when the desired object is detected and, by doing so, reduces annoying false alarms caused by shad-ows, light changes, shaking trees, animals,Etc.

DDA™ Line Crossing

DDA™ Sterile Area

DDA™ People/Vehicle Counting

The user draws a line in the scene and sets the crossing direction
and permissions—for example, Pedestrian only street. If vehicles
are not allowed to enter the road, the system will generate an
alarm only when a vehicle crosses the line. No alarm will be
generated if a human crosses the line.

The user draws an area in the scene and sets access permissions—
for example, No-Parking Zone. If vehicles are not allowed to access
the “No-Parking Area, “ but people are, the system will generate
an alarm only when a vehicle enters the area. In addition, the user
can configure if entering/exiting the area will trigger an alarm.

The user places the camera at a gate entrance/exit for
real-time monitoring—for example, Vehicle Maximum Limit.
The system will count the number of vehicles entering and exiting
the area and alert when the number reaches the maximum limit.

SPECIFICATIONS
3rd Party Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import--Table Protection, Dynamic-Memory Protection.
NDAA-Compliance
NDAA-Compliance	Yes
Video
Image Sensor	1/3" CMOS (16:9)
Effective Pixels	2592x1520
Electronic Shutter	1s ~ 1/100000s
Day & Night	ICR + 24/7 Full-Color Day Mode
Min. Illumination	Day: 0.1Lux Night: 0.04lux @F1.6, AGC på) 0lux with IR on
Audio
Audio Compression	G.711A/G.711U
Communication	One-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Event and Analytics
Analytics	General Analytics: Camera Tampering, Item Monitoring AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
Motion Detection	Yes
Compression
Resolution	4MP/2K/3MP/2MP/D1/QVGA/CIF
Frame Rate	1-25/30FPS
Video Compression	H.265+/H.264+/H.265/H.264/MJPEG**
Multi-Stream	Master Stream: 4MP(2592x1520)/2K(2560x1440)/3MP/2MP/1MP Substream: 1MP/QVGA/D1/CIF Third Stream QVGA/D1/CIF(1~30fps))
Bit rate	64Kbps~6Mbps@H.265/256Kbps~8Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	2.8-12mm MVF with Auto Focus (89-31°)
Iris	DC Iris
Lens Mount	Ø14
DRI Distance	Detect: 2.8~12mm: 64m - 189m Recognize: 2.8~12mm: 13m - 38m Identify: 2.8~12mm: 6m - 19m
Network
User Access	Multi-stream real-time transmission
Network Protocol	SNMP
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	10/100Mbps
ONVIF	Profile M/T/S/G
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	Built-in Microphone + Audio In
Alarm	No
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand	No
Power	DC Socket
Analog Video Output	No
Housing
PoE	Yes
Illumination	40m (2 High-Power IR-LED) 30m (1 High-Power White-LED)
Power Supply	DC12V/~600mA / PoE/~9W
Protection Rate	Water Proof: IP67
Work Environment	-30°C~60°C, 10%~90% Humidity
Bracket	3-Axis Bracket
Dimensions	Ø113mm×99.6mm
Weight (gross)	~730g
Återställningsknapp	Yes
Junction Box	PR-DJ14IP66 - PR-JB14IP66 - PR-JB14IP64
