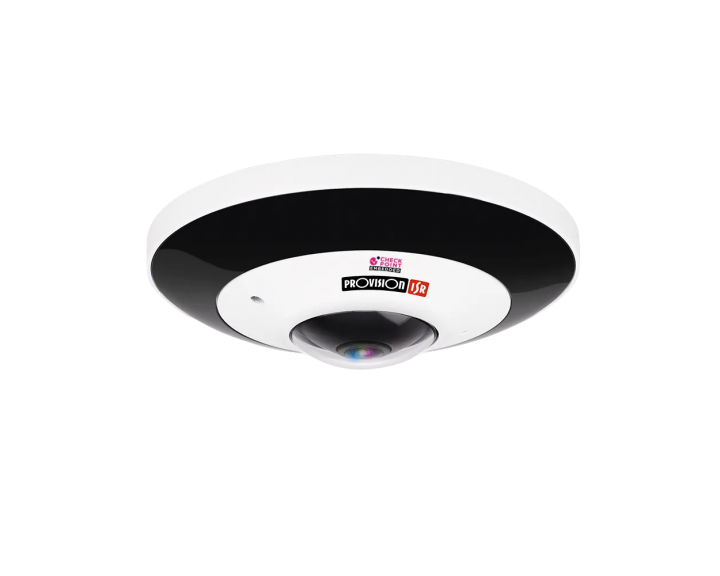

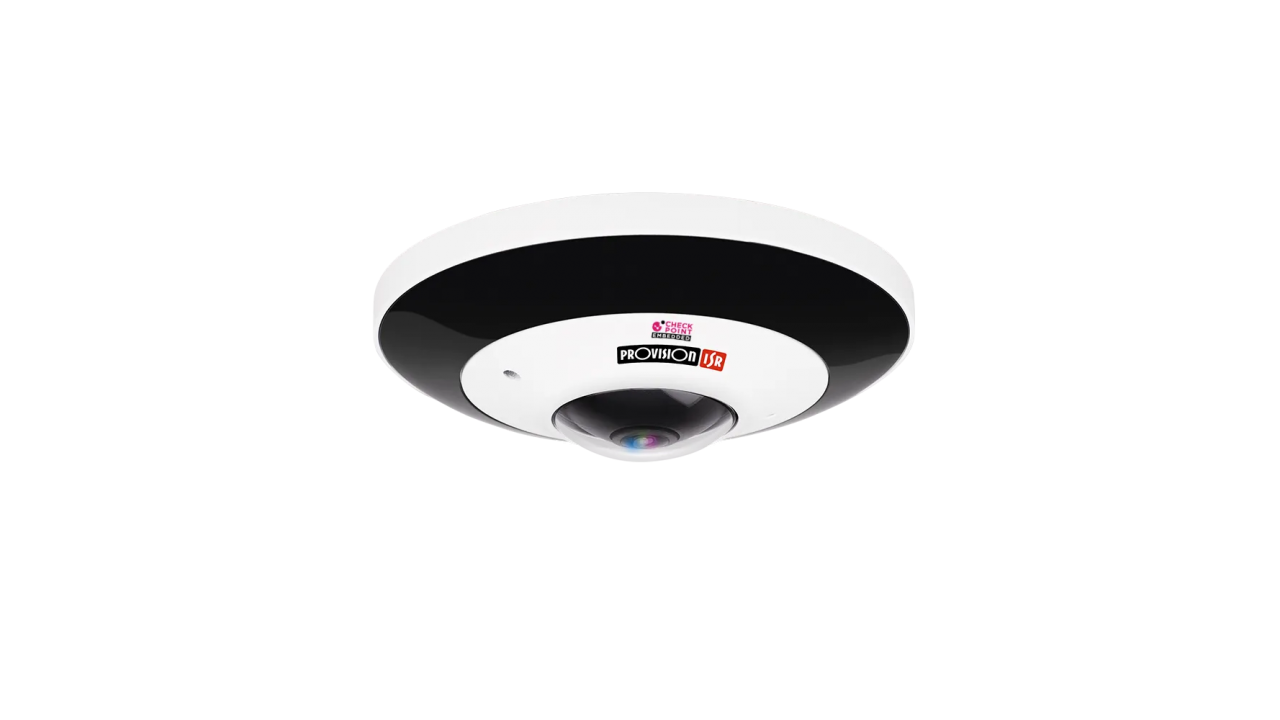

6MP Fisheye camera,
1.65mm (360°) Lens, 15M IR

KEY FEATURES

Sensor: 1/2.9″ CMOS (2160 x 2160 – 16:9).
Resolution: 2160×2160 (1:1) 25/30FPS (6MP).
Lens: 1.65mm (360° for Ceiling Mount / 180° For Wall Mount).
True Day&Night – ICR.
Illumination: 15m (4 High-Power IR LEDs.
Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
Quantum IoT Nano agent by Check Point™.
AI: DDA Human Only in Ceiling Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting, Heat Map.
Digital WDR, BLC, HLC, ROI.
SD Card: Event/Schedule Record (Up to 256GB).
Alarm in + Alarm out.
Built-In Microphone + Audio Input + Audio Output.
ONVIF: Profile S/G.
Water Proof: IP67.
Weight: ~530g.
Power: DC12V/~450mA / PoE/~7W.

FUNCTIONS

FEI-360IPN-V3 is ideal for large open spaces, this 6MP Panoramic Fisheye Anti-Vandal camera can capture footage at a wide angle of 360°.
The camera includes a built-in microphone, Digital WDR, BLC, HLC, and 3D-DNR for poor light conditions. Our Fisheye camera FEI-360IPN-V3
can do the work of multiple fixed focus lens cameras.

SPECIFICATIONS
3rd Party Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
NDAA Compliant
NDAA Compliant	Yes
Video
Image Sensor	1/2.9" CMOS (2160 x 2160 - 16:9)
Effective Pixels	2160x2160 (1:1)
Electronic Shutter	1/25s ~ 1/100000s
Day & Night	ICR
Min. Illumination	0.1lux (@F2.0, AGC on) 0lux with IR on
Audio
Audio compression	G.711A/G.711U
Communication	Two-Way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	Digital WDR, BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	360
Privacy Zone	Yes
Events and Analytics
Analytics	AI: DDA Human Only in Ceiling Installation: Line Crossing, Sterile Area, Area Entry, Area Exit, Object Counting, Heat Map
Motion Detection	Yes
Compression
Resolution	6MP(3200x1800), 5MP(2160x2160), 2MP(1440x1440), 2MP(1920x1080), 960x960, 480x480
Frame Rate	1-25/30FPS
Video Compression	H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream	Master Stream: 6MP(3200x1800), 5MP(2160x2160), 4MP(1920x1920), 2MP(1440x1440) (1~30fps) Substream: 960x960, 480x480 (1~30fps) Third Stream: 960x960, 480x480 (1~30fps)
Bit Rate	64Kbps ~ 6Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	1.65mm (360° for Ceiling Mount / 180° For Wall Mount)
Iris	Fixed Iris
Lens Mount	M12 Mount
Network
User Access	Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
Remote Monitoring	IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	10/100Mbps
ONVIF	Profile S/G
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	Built-In Microphone + Audio Input + Audio Output
Alarm	Alarm in + Alarm out
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand	N/A
Power	DC Socket
Analog Video Output	CVBS (BNCx1)
Housing
PoE	Yes
Illumination	15m (4 High-Power IR LEDs)
Power Supply	DC12V/~450mA / PoE/~7W
Protection Rate	Water Proof: IP67
Work Environment	-30°C~60°C, 10%~90% Humidity
Bracket	No
Dimensions	Φ130mm×46mm
Weight (gross)	~530g
Hard Reset Button	Yes
