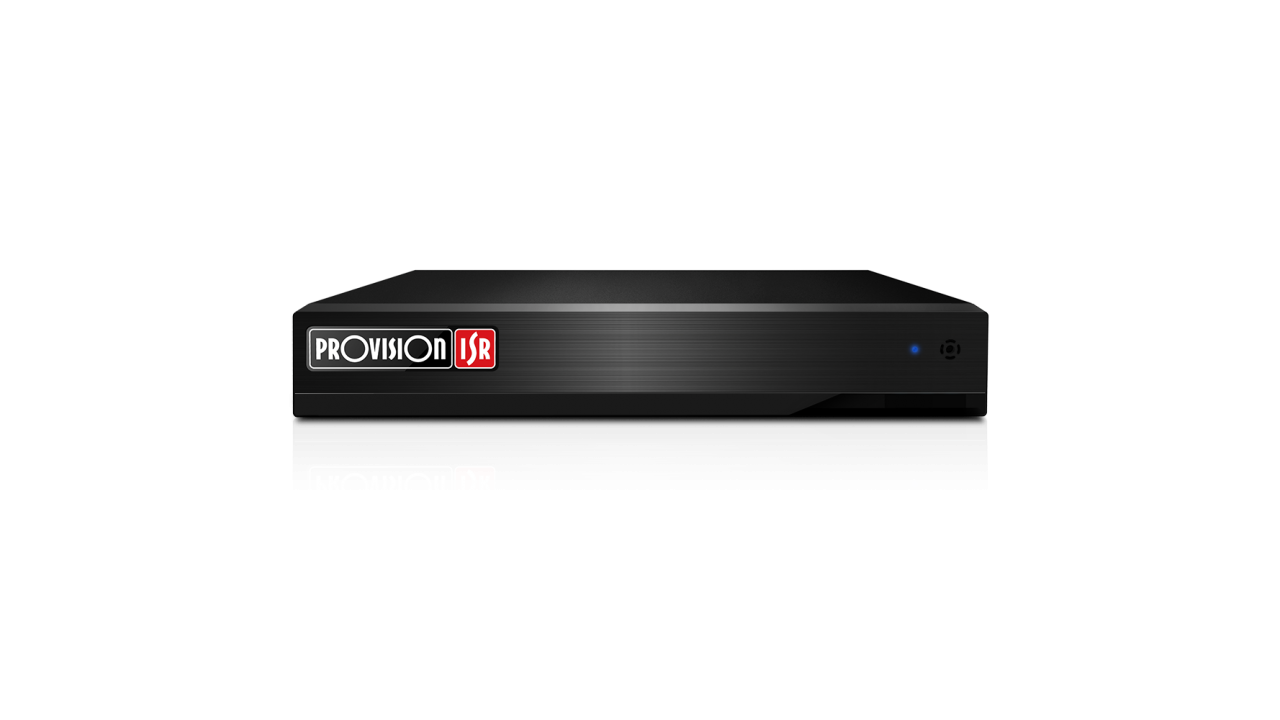

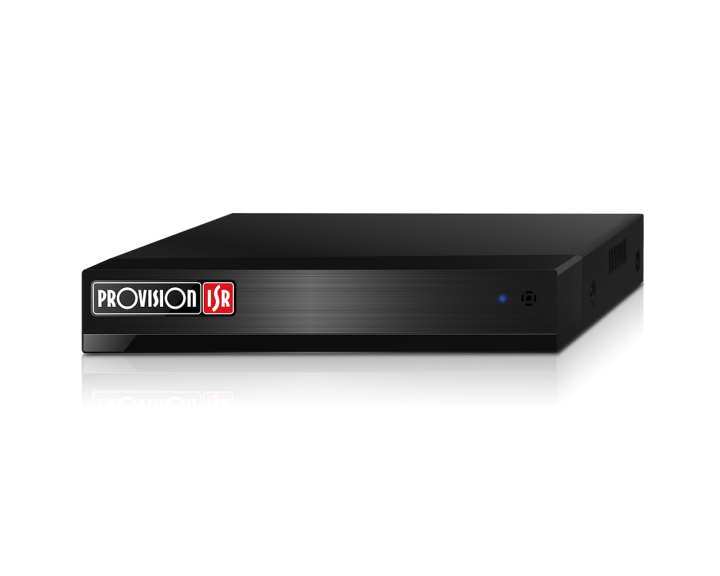

| 8+4 Channel Hybrid Recorder, 5MP. | |
elegant mini metal case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder complies with NDAA demands and supports Provision-ISR's DDA Video Analytics for analogIP cameras. |
|
| SPECIFICATIONS | |
|---|---|
| NDAA Compliant | |
| NDAA Compliant | Yes |
| General | |
| Technology | Hybrid DVR |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS |
| Format | “All in 1” Hybrid (AHD / CVI / TVI / CVBS + IP) |
| Video Input | |
| Video Input (Max Analog) | 8CH Standard BNC + 4CH IP (Over Network) |
| Video Input (Max IP) | 12CH IP (Over Network) + 0CH Standard BNC |
| 3K Input Support | Yes |
| Video Output | |
| Video Output | HDMI(1920x1080), VGA (1280x1024, 1024x768), CVBS(Spot) |
| Dual Output | Mirrored |
| Audio | |
| Audio-In | 1CH RCA (2.0 Vp-p, 1 kΩ) (+IP Cameras) |
| Audio-Out | 1CH RCA (2.0 Vp-p, 1 kΩ) (+IP Cameras) |
| Audio Over Coax | Yes (TVI Only) |
| Two Way Audio | Yes |
| Audio Compression | G.711u |
| Events and Analytics | |
| SMD Support | Yes |
| DDA Analytics (On Analog Channels) | Yes |
| Pixel Based Analytics | Yes |
| Main Resolution and FPS | |
| IP Main Stream | 5MP And Lower: 25/30FPS Per Channel |
| PTZ Features | |
| AHD | AHD 3K/5MP Lite: Up To 10FPS Per Channel, 4MP Lite / 2MP: Up To 12/15FPS Per Channel, 2MP Lite / 1MP: Up To 25/30FPS Per Channel |
| TVI | 3K/5MP Lite: Up To 10FPS Per Channel, 4MP Lite / 2MP: Up To 12/15FPS Per Channel, 2MP Lite / 1MP: Up To 25/30FPS Per Channel |
| CVI | 4MP Lite / 2MP: Up To 12/15FPS Per Channel, 2MP Lite / 1MP: Up To 25/30FPS Per Channel |
| CVBS Main Stream | CVBS: 960H: Up To 25/30FPS Per Channel |
| Master Stream Over Network | 4Ch |
| Network (Substream) Resolution And FPS | |
| HD Analog | 1-25/30FPS@D1 Per Channel |
| CVBS Sub Stream | 1-25/30FPS@D1 Per Channel |
| Substreams Over Network | 60 (Outgoing Bandwith Limit Applies) |
| Remote View | |
| Max Channel View | 60Ch (Limited To Outgoing Bandwidth Capacity) |
| Video Compression | |
| Video Compression | H.265 (HEVC) / H.264 |
| Record | |
| Recording Mode | Main Stream Only |
| Remote Applications | |
| User Access | 5 Users Online With Professional Authority Management |
| Mobile App | Provision Cam2 For iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in Free Web-Browser | Chrome, FireFox, Safari, Edge, Opera (All Limited to 4Ch Live View / Playback) |
| Plug-in Based Web-Browser | Internet Explorer |
| Bandwidth | |
| Incoming | 32Mbps |
| Outgoing | 40Mbps |
| Playback | |
| Local Playback Channels | 8Ch |
| Remote Playback Channels | 4Ch |
| Search Modes | Time-Slice, Time, Event, File Management, Smart Search |
| Backup | |
| USB | 2 USB 2.0 Port |
| Backup Format | AVI/DAT |
| Alarm | |
| Alarm-in | IP Cameras Only |
| Alarm-out | IP Cameras Only |
| Alarm Box Support | Yes I/O-1606 |
| Storage | |
| HDD Max Capacity | 6TB |
| Total HDD Max Capacity | 6TB |
| Number Of HDD | 1 |
| E-Sata | No |
| PTZ | |
| Connection | RS-485 / CoC / IP Over Network |
| Supported Protocols | Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| Network | |
| Ethernet | 10/100Mbps (RJ-45) |
| Protocols | TCP/IP, DHCP, DDNS, NTP, SMTP, RTSP, HTTPS, FTP, SNMP, P2P, POS |
| ONVIF | Yes (For IP channels) |
| Others | |
| Dimensions | W255 x D220 x H43mm |
| Power Supply | DC12V/2A |
| Operation Temperature | 0°C ~50°C |
SH-8100A5N-5L(MM)-V2
8+4 Channel Hybrid Recorder, 5MP.
PRODUCT SHEET
- Manufacturer: Provision ISR
- Product Code: 22-139
- EAN: 0610840138476
- In Stock 2pcs
- Available 2pcs
