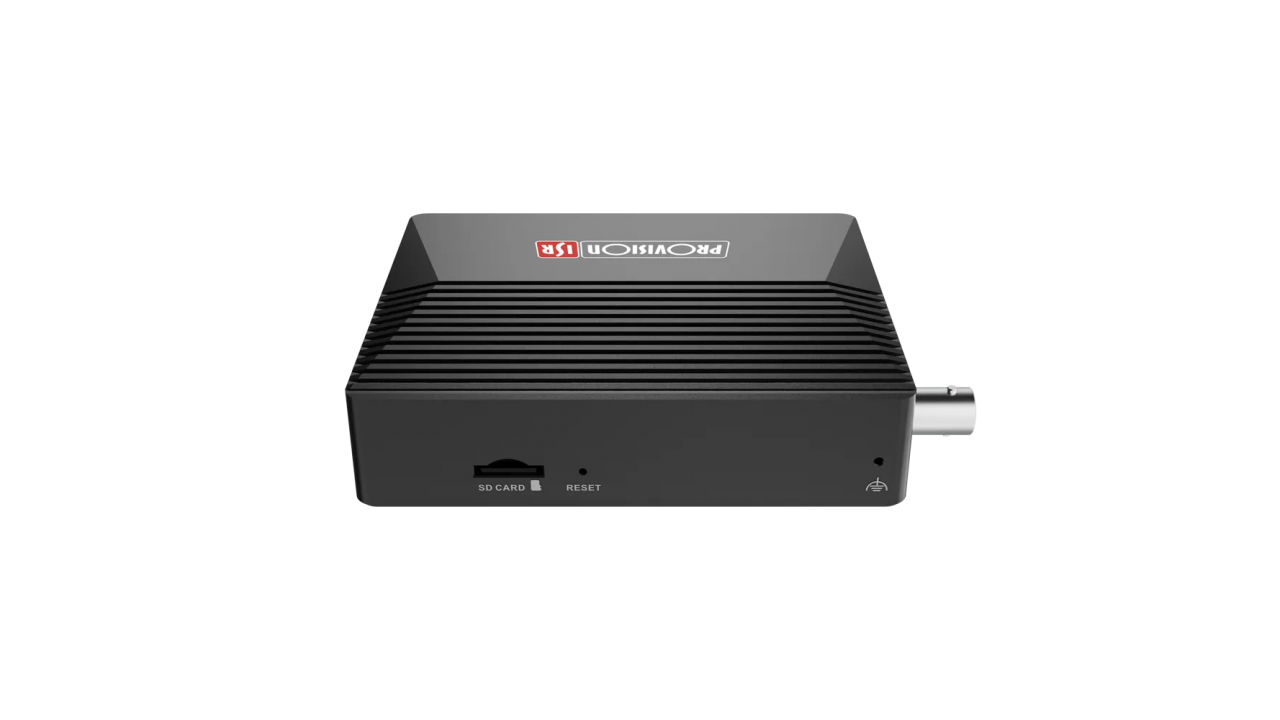

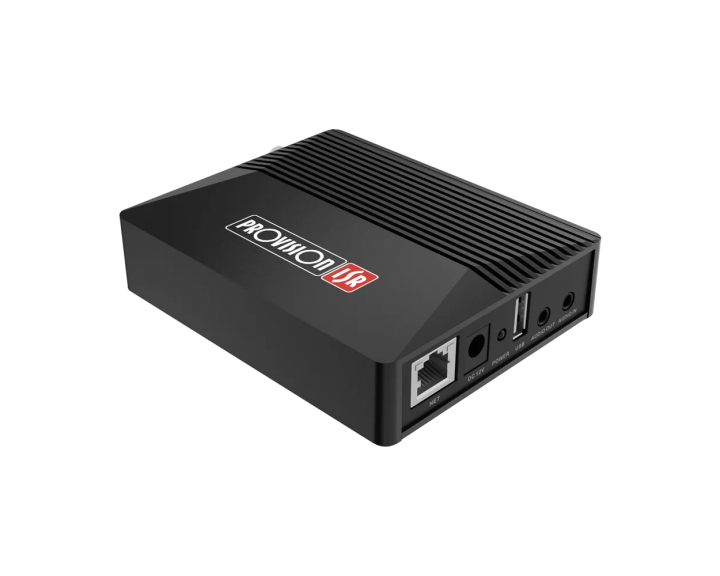

Digital IP Video Server With 8/4
Alarm Input/Output, DDA 1,
Supporting 4 Analog Cameras.


KEY FEATURES

  • DVS-IPEN-5 5MP Fixed DVS Camera with and DDA1 Analytics.
  • Resolution: 25/30FPS (5MP).
  • Compression: H.265+/H.264+/H.265/H.264/MJPEG.
  • General Analytics: Camera Tampering.
  • AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area).
  • AI (Face Detection): 10 Faces per frame.
  • AI: Heatmap.
  • SD Card: Event/Schedule Record (Up to 256GB).
  • 8 Alarms In + 4 Alarms Out.
  • Audio input + Audio output.
  • ONVIF: Profile T/S/G.
  • Weight: ~272g.
  • Power: DC12V/AC24V/PoE/~5.5W.
  • DC out: 12VDC/0.5A/~6W.


FUNCTIONS





The DVS-IPEN-5 supports 8 alarm inputs, 4 alarm outputs, and is compatible with TVI, AHD, and CVI cameras up to 5MP resolution.
This versatile solution seamlessly integrates with external sensors for comprehensive surveillance. Ideal for both commercial and
residential settings, it ensures high-quality video capture, recording, and real-time response to alarms, enhancing overall security.
This model complies with NDAA demands.



Artificial Intelligence by Provision-ISR


Humans


2-Wheels


4-Wheels

Detect. Distinguish. Alert.

DDA™ VIDEO ANALYTICS allows the system to distinguish between humans, 4-wheel vehicles, and 2-wheel vehicles based on smart object recognition technology. Thanks to this technology, the system triggers alarms or sends push noti-fications only when the desired object is detected and, by doing so, reduces annoying false alarms caused by shad-ows, light changes, shaking trees, animals,Etc.


DDA™ Line Crossing

DDA™ Sterile Area

DDA™ People/Vehicle Counting

The user draws a line in the scene and sets the crossing direction
and permissions—for example, Pedestrian only street. If vehicles
are not allowed to enter the road, the system will generate an
alarm only when a vehicle crosses the line. No alarm will be
generated if a human crosses the line.

The user draws an area in the scene and sets access permissions—
for example, No-Parking Zone. If vehicles are not allowed to access
the “No-Parking Area, “ but people are, the system will generate
an alarm only when a vehicle enters the area. In addition, the user
can configure if entering/exiting the area will trigger an alarm.
The user places the camera at a gate entrance/exit for
real-time monitoring—for example, Vehicle Maximum Limit.
The system will count the number of vehicles entering and exiting
the area and alert when the number reaches the maximum limit.
SPECIFICATIONER
Larmingång

21.5"

Larmutgång

300cd/m²

Anslutningsgränssnitt

1920x1080pixels

Strömförsörjning

3ms

Energiförbrukning

No

Konsol

Full HD

Dimension

LCD

Vikt

TN

Miljö

170°

Write a review

Please login or register to review

DVS-IPEN-5

Digital IP Video Server With 8/4
Alarm Input/Output, DDA1,
Supporting 4 Analog Cameras.

PRODUCT SHEET

  • Manufacturer: Provision ISR
  • Product Code: 22-330
  • EAN: 0610840139077
  • In Stock 0pcs Delivery 7-10 Days from order date!
  • Available 0pcs
