4MP Vandal Proof Mini Dome Camera,
With Check Point Protection,
DDA 2nd Generation,
2.8mm (100°) Lens, 60M IR.

KEY FEATURES

1/3” CMOS.
Resolution: 2592X1520/25FPS (4MP).
Lens: 2.8mm Mega-Pixel Fixed.
True WDR (120dB), BLC, HLC, ROI.
IR Range: 10m (2 High-Power IR LED).
H.265/H.264 Compression.
DDA 2nd generation:
Distinguishes gender, age, clothing color and accessories on people. Brand, car type and color of cars. Bicycle, Motorcycle, E-bike, Tricycle or unknown.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing, DDA Object Counting.
AI (Face Detection): 10 Faces per frame.
D-WDR/BLC/HLC Support.
PoE.
SD Card Support (Up to 256GB).
Audio In + Audio Out + Built-in Microphone.
Alarm In + Alarm Out.
ONVIF Profile: T/S/G/M.
IP67, IK10.
Weight: 430g.
Power: DC12V/~400mA / PoE/~6.5W.

FUNCTIONS

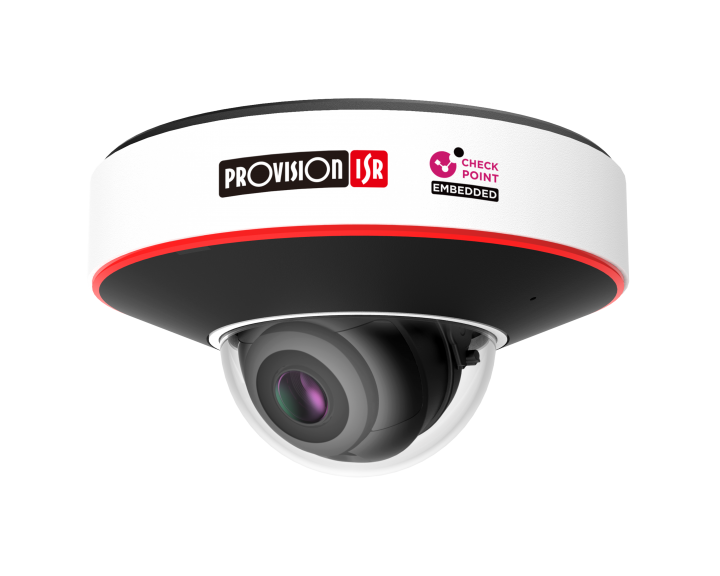

The DMA-360IPEN-28-V4 camera has a 2.8mm fixed lens and a protective dome. With its 11cm diameter, this 4MP
mini-dome camera is designed for short-distance surveillance (up to 10m) in indoor scenarios. The vandal-proof IK10
protection makes it extremely hard to sabotage. Fitted with the new “Dual System” technology, the camera can deal
with internal anomalies independently, making it more redundant to software-based issues. The camera offers broad
possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the
newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age,
color, gender, vehicle brand and much more. The DMA-360IPEN-28-V4 camera is here to end false alarms and, with the
Check Point protection, ensures that your devices are cyber-protected round the clock.

"AI" Video Analytics DDA 2nd Generation

Human Recognition
Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..

Vehicle Recognition
Once the vehicle is detected, you can have a complete description, including the brand, type, and color!

Provision-ISR Artiﬁcial Intelligence

The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artiﬁcial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reﬂective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artiﬁcial Intelligence video analytics functions:

DDA Analytics

Face Detection

Face Recognition

Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notiﬁcations only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.

The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.

Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.

SPECIFICATIONS
3rd Party Cyber Protection
General	Quantum IoT Nano-agent by Check Point™.
Protection Methods	Shell injection protection, File Monitor, Import-Table Protection, Dynamic Memory Protection
NDAA Compliant
NDAA Compliant	Yes
Video
Image Sensor	1/2.5" CMOS (16:9)
Effective Pixels	3296x1856
Electronic Shutter	1/4s ~ 1/100000s
Day & Night	ICR
Min. Illumination	0.008lux (@F1.6, AGC på) 0lux med IR på
Audio
Audio compression	G.711A/G.711U
Communication	Two-Way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip, Corridor Mode
Privacy Zone	Yes
Events and Analytics
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
Motion Detection	Yes
DRI Distance	Detect 71m Recognize 14m Identify 7m
Compression
Resolution	6MP(3296x1856)/QHD(3200x1800)/2880x1624/2688x1520/2MP(1920x1080)/1MP(1280x720)/D1(704x576)/CIF(352x288)
Frame Rate	1-25/30BPS
Video Compression	H.265 / H.264 / MJPEG (Endast sub-ström)
Multi-Stream	Master Stream: 6MP(3296x1856)/QHD(3200x1800)/2880x1624/2688x1520/2MP (1920x1080) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit Rate	64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
Lens
Lens (Field of View)	2.8mm (104°)
Iris	Fixed Iris
Lens Mount	M12
Nätverk
User Access	Supports simultaneous monitoring of up to 10 users with multi-stream realtime transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, E-post, FTP, HTTPS, QoS
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
Ethernet	100Mbps
ONVIF	Profile T/S/G/M
Connectivity
Network	RJ45 (+PoE)
Audio Connectivity	Built-in Microphone + Audio input + Audio output
Alarm	Alarm in + Alarm out
SD Cort	Event/Schedule based Main/Substream recording (Up to 256Gb)
Wiegand	No
Power	DC Socket
Analog Video Output	No
Housing
PoE	Yes
Illumination	20m (2 High-Power IR LED)
Power Supply	DC12V/~400mA / PoE/~6.5W
Protection Rate	Water Proof: IP67 Vandal Proof:IK10
Work Environment	-30°C~60°C, 10%~90% Humidity
Bracket	3-Axis Bracket
Dimensions	Ø110.4mm×62mm
Weight (gross)	~430g
Hard Reset Button	Yes
Junction Box	PR-B10BJB - PR-WB-A
