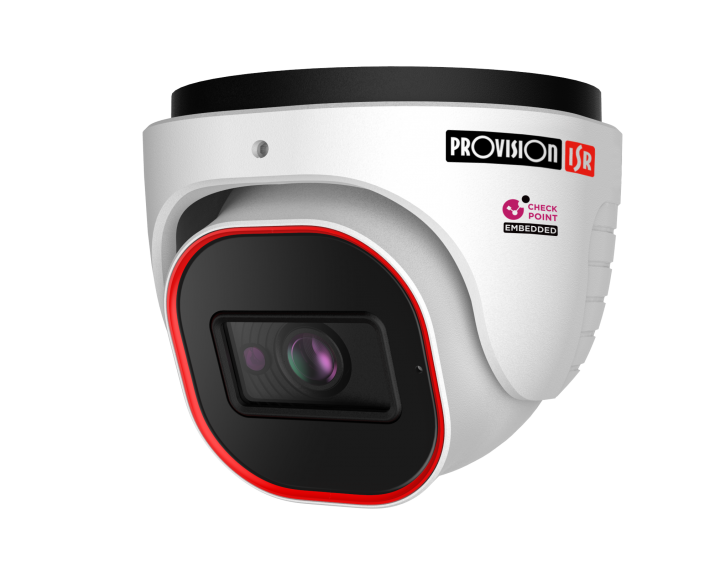

6MP Vandal Proof Turret Camera,
With Check Point Protection,
DDA 2nd Generation,
2.8mm (104°) Lens, 20M IR.


KEY FEATURES

  • Sensor: 1/2.5″ CMOS (16:9).
  • Resolution: 3296×1856 25/30FPS (6MP).
  • Lens: 2.8mm (104°).
  • True Day & Night – ICR.
  • Illumination: 20m (1 High-Power IR LED).
  • Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG.
  • Quantum IoT Nano agent by Check Point™.
  • General Analytics: Camera Tampering.
  • AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection.
  • AI (Face Detection): 10 Faces per frame.
  • AI: Heatmap.
  • DDA2: Advanced Object Classification.
  • True WDR (120dB), BLC, HLC, ROI
  • SD Card Support (Up to 256GB).
  • Audio In + Audio Out + Built-in Microphone.
  • ONVIF: Profile T/S/G/M.
  • Water Proof: IP67.
  • Weight: 540g.
  • Power: DC12V/~500mA / PoE/~6.5W.


FUNCTIONS




Equipped with a 2.8mm fixed lens, this 6MP camera is designed for short-distance surveillance (up to 20m) in indoor
and outdoor scenarios. Fitted with the new “Dual System” technology, the camera can deal with internal anomalies
independently, making it more redundant to software-based issues. The camera offers broad possibilities for Analytics,
from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2,
which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle
brand and much more. The DI-360IPEN-28-V4 camera is here to end false alarms and ensures that your devices are
cyber-protected round the clock with the Check Point protection.

"AI" Video Analytics DDA 2nd Generation


Human Recognition

Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..


Vehicle Recognition

Once the vehicle is detected, you can have a complete description, including the brand, type, and color!



Provision-ISR Artificial Intelligence
The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artificial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reflective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artificial Intelligence video analytics functions:

DDA AnalyticsFace DetectionFace Recognition
Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notifications only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.
The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.
Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.


SPECIFICATIONS
3rd Party Cyber Protection

General

Quantum IoT Nano-agent by Check Point™.

Protection Methods

Shell injection protection, File Monitor, Import-Table Protection, Dynamic Memory Protection

NDAA Compliant

NDAA Compliant

Yes

Video

Image Sensor

1/2.5" CMOS (16:9)

Effective Pixels

3296x1856

Electronic Shutter

1/4s ~ 1/100000s

Day & Night ICR

Min. Illumination

0.008lux (@F1.6, AGC på) 0lux med IR på

Audio

Audio compression

G.711A/G.711U

Communication

Two-Way Audio


Image Settings

AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable

Image Enhancement

True WDR (120dB), BLC, HLC, ROI

Noise Reduction

3D-DNR

Image Orientation

Mirror/Flip, Corridor Mode

Privacy Zone

Yes

Events and Analytics

Analytics

General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification

Motion Detection

Yes

DRI Distance

Detect 71m
Recognize 14m
Identify 7m

Compression

Resolution

6MP(3296x1856)/QHD(3200x1800)/2880x1624/2688x1520/2MP(1920x1080)/1MP(1280x720)/D1(704x576)/CIF(352x288)

Frame Rate

1-25/30BPS

Video Compression

H.265 / H.264 / MJPEG (Endast sub-ström)

Multi-Stream

Master Stream: 6MP(3296x1856)/QHD(3200x1800)/2880x1624/2688x1520/2MP (1920x1080)
Substream: 1MP/QVGA/D1/CIF
Third Stream: QVGA/D1/CIF (1~30fps)

Bit Rate

64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264

Encode Mode

VBR/CBR

Image Quality

Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)

2.8mm (104°)

Iris

Fixed Iris

Lens Mount

M12

Nätverk

User Access

Supports simultaneous monitoring of up to 10 users with multi-stream realtime transmission

Network Protocol

IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, E-post, FTP, HTTPS, QoS

Remote Monitoring

IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App

Ethernet

100Mbps

ONVIF

Profile T/S/G/M

Connectivity

Network

RJ45 (+PoE)

Audio Connectivity

Built-in Microphone + Audio input + Audio output

Alarm

No

SD Cort

Event/Schedule based Main/Substream recording (Up to 256Gb)

Wiegand

No

Power

DC Socket

Analog Video Output

No

Housing

PoE

Yes

Illumination

20m (1 High-Power IR LED)

Power Supply

DC12V/~450mA / PoE/~7W

Protection Rate

Water Proof: IP67

Work Environment

-30°C~60°C, 10%~90% Humidity

Bracket

3-Axis Bracket

Dimensions

Ø97mm×82.6mm

Weight (gross)

~540g

Hard Reset Button

Yes

Junction Box

PR-JB12IP66 - PR-JB12IP64 - PR-WB-A
