16 Channels Recorder 12MP, with 16xPoE,

Check Point Protection, Face recognition

and NDAA Copliance, 400/480bps, 160Mbps.

KEY FEATURES

Input: 16 Channel (Via PoE Network).
Output: HDMI/HDMI(4K)/1080P/1280x1024/1024x768.
Recording resolution - up to 12 Megapixels.
1U Case.
8 HDD - up to 16TB (2x8TB/HDD).
Audio In/Out.
8 Alarm In.
4 Alarm Out.
1x1000Mbps Network.

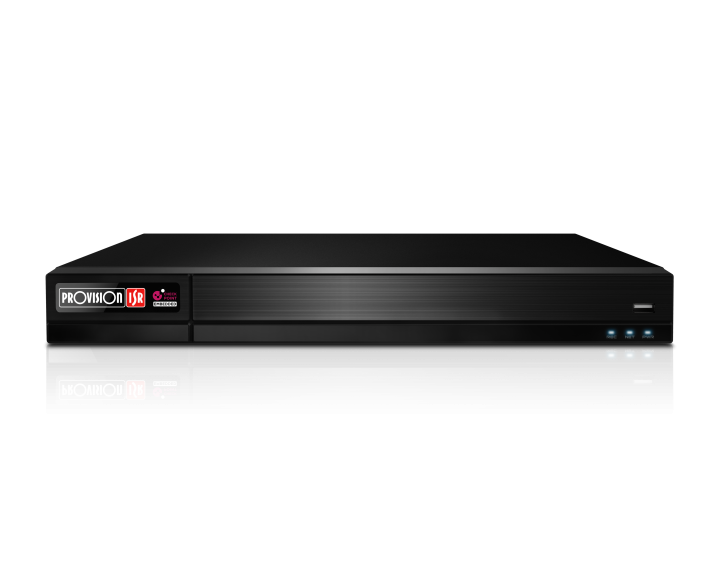

Provision-ISR NVR12-16400PFAN(1U) is a high-performance network video recorder with an integrated
16-channel PoE switch for high-definition surveillance. The device features 8 alarm inputs + 4 alarm
outputs and supports Face Recognition and Advanced Video Analitycs (DDA2). This easy-to-install solution
is suitable for small-sized installations (up to 16 channels) and provides everything you need for a trouble
free CCTV project.
This model complies with NDAA demands and ensures that your devices are cyber-protected round
the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat
prevention layer against the common attack vectors at runtime.

Link To Video Manual All Chapters

SPECIFICATIONS
Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
Video
Input	16 Channel (Via PoE Network)
Output	HDMI: (4K 30/60Hz, 1080P, 1280x1024)
View Mode	Mirrored
Decoding Format	H.265/H.265+/H.265S/H.264
Fish-Eye Dewarp	Yes
Decoding Capabilities	1Ch-12MP; 4Ch-2MP
Audio
Input	1CH RCA (Linear, 1kΩ) + IPC inputs
Output	1CH RCA (2.0 Vp-p, 1kΩ) + IPC outputs
Compression	G.711A/G.711U
Two Way Audio	Yes
Analytics
Analytics Channels	16Ch (requires supporting IPC) NVR Based Up to 2Ch Face Recognition (From non AI IPC)
Supported Analytics	Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR. Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.
Face Recognition Rate	180 Faces per minute (All Channels)/3 Faces per second (Single Channel)
Bandwidth
Incoming	160Mbps
Outgoing	160Mbps
Record/Main Stream
Real-Time Recording	16CH 8MP real-time 12MP-20FPS
Record Type	Video/Video+Audio
12MP	320FPS (NTSC)/320FPS (PAL)
8MP	480FPS (NTSC)/400FPS (PAL)
5MP and lower	480FPS (NTSC)/400FPS (PAL)
Master stream over network	Up to 12CH@Recording resolution
Record/Remote App
Resolution	Depends on IPC
Sub-Streams over Network	Up to Outgoing Bandwidth Capacity
Recording Modes	Schedule, Manual, Motion, Sensor, Analytics, POS and all combinations
User Access	64 Users online with Professional Authority Management
Mobile App	Provision Cam2 for iOS/Android
PC/Mac Software	Ossia VMS Standard/Enterprise
Plug-in free Web-Browser	Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View/Playback)
Plug-in based Web-Browser	Internet Exporer
Playback
Local Playback	16Ch
Remote Playback (Web, App, VMS)	16Ch on IE, 4Ch on H5
Search Mode	DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
Backup
USB	2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format	AVI (Unencrypted) / Private Format (Encrypted/Unencrypted)
Alarm
Input	8+IPC
Output	4+IPC
Storage
HDD	8
E-SATA	-
Max Capacity	16TB (Up to 8TB Each)
RAID	-
PTZ
Connection	via Network
Supported Controls	Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485	Yes (C06 Keyboard Connection)
Network
Ethernet	1x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance/Dual Network Configuration
Protocols	TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF	Full Device Support (Profile T/G, ONVIF Version 20.12)
PoE
Ports	16xRJ45
Speed	10/100Mbps (10Mbps under CCTV mode)
Standard	PoE (IEEE802.3AF)
CCTV Mode	Yes (Up to 200m and 10Mbps bandwidth)
Total Power	150W (Avarage 9.3W per Channel)
Max. Power Output (Per Ch.)	~15W*
Others
Power Supply	12VDC/4A
Power consumption (No HDD)	30W
Dimension	W380xD268xH48.1mm
Operation Temperature	0~50°C

*Max power output will be reduced depending on cable quality and distance
