4 Channel Recorder 5MP, witch 4xPoE,
NDAA Compliance, 100/120fps, 64Mbps.

KEY FEATURES

Input: 4 Channel (By network/PoE).
Output: HDMI 1080P/1280x1024/1024x768.
Recording resolution - up to 5 Megapixels.
1 HDD - 6TB/HDD.
4x10/100Mbps RJ45.
1x1000Mbps Network.
DDA2, Face recognition, LPR and Fish-Eye

FUNCTIONS

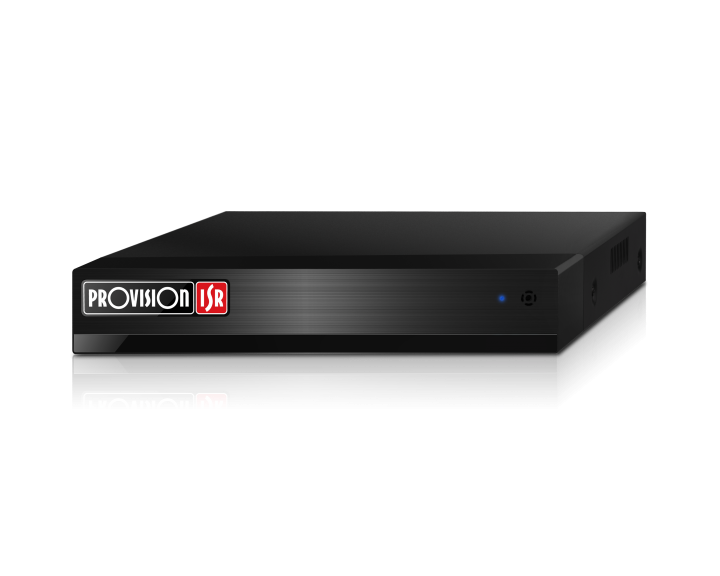

Provision-ISR NVR5-4100PXN(MM) is an NDAA-compliant high-performance network video recorder with an integrated 4-channel
PoE switch for high-definition surveillance. This easy-to-install solution is suitable for small-sized installations (up to 4 channels)
and provides everything you need for a trouble-free CCTV project.

Link To Video Manual All Chapters

SPECIFICATIONS
Cyber Protection
General	-
Protection Methods	-
Video
Input	4Ch over Network/ PoE by internal PoE switch
Output	HDMI / VGA (1080P, 1280x1024, 1024x768)
View Mode	Mirrored
Decoding Format	H.265/H.265+/H.265S/H.264
Fish-Eye Dewarp	Web only
Decoding Capabilities	1Ch-5MP; 4Ch-2MP
Audio
Input	IPC inputs
Output	IPC outputs
Compression	G.711A/G.711U
Two Way Audio	No
Analytics
Analytics Channels	4Ch (requires supporting IPC)
Supported Analytics	Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal *DDA/LPR Analytics Live Snapshots are not supported
Face Recognition Rate	-
Bandwidth
Incoming	40Mbps
Outgoing	64Mbps
Record/Main Stream
Real-Time Recording	4CH 5MP real-time
Record Type	Video/Video+Audio
12MP	-
8MP	-
5MP and lower	120FPS (NTSC)/100FPS (PAL)
Master stream over network	Up to 4CH@Recording resolution
Record/Remote App
Resolution	Depends on IPC
Sub-Streams over Network	Up to Outgoing Bandwidth Capacity
Recording Modes	Schedule, Manual, Motion, Sensor, Analytics, POS and all combinations
User Access	64 Users online with Professional Authority Management
Mobile App	Provision Cam2 for iOS/Android
PC/Mac Software	Ossia VMS Standard/Enterprise
Plug-in free Web-Browser	Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View/Playback)
Plug-in based Web-Browser	Internet Exporer
Playback
Local Playback	4Ch
Remote Playback (Web, App, VMS)	4Ch
Search Mode	DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
Backup
USB	2 USB 2.0 Port
Backup Format	AVI (Unencrypted) / Private Format (Encrypted/Unencrypted)
Alarm
Input	IPC
Output	IPC
Storage
HDD	1
E-SATA	-
Max Capacity	6TB
RAID	-
PTZ
Connection	by Network
Supported Controls	Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485	-
Network
Ethernet	1x100/10Mbps self-adaptive Ethernet interface
Protocols	TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF	Full Device Support (Profile T/G, ONVIF Version 20.12)
PoE
Ports	4xRJ45
Speed	10/100Mbps (10Mbps under CCTV Mode)
Standard	IEEE802.3AF/AT
CCTV Mode	Yes (Up to 200m and 10Mbps bandwidth)
Total Power	40W (Average 10W per Channel)
Max. Power Output (Per Ch.)	~12W*
Others
Power Supply	DC48V/1.25A
Power consumption (No HDD)	5W
Dimension	W255xD220xH45mm
Operation Temperature	0~50°C
