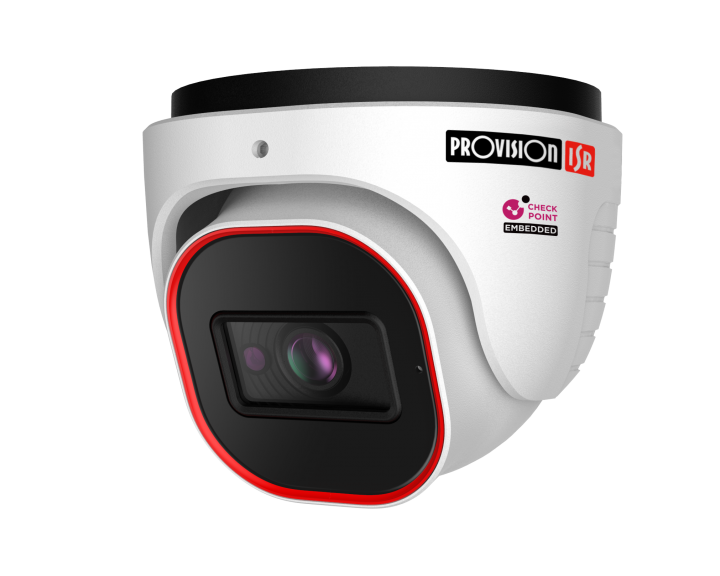

4MP Vandal Proof Turret Camera,
With Check Point Protection,
DDA 2nd Generation,
2.8mm (96°) Lens, 20M IR.

KEY FEATURES

1/3” CMOS.
Resolution: 2592X1520/25FPS (4MP).
Lens: 2.8mm Mega-Pixel Fixed.
True WDR (120dB), BLC, HLC, ROI.
IR Range: 20m (1 High-Power IR LED).
H.265/H.264 Compression.
DDA 2nd generation:
Distinguishes gender, age, clothing color and accessories on people. Brand, car type and color of cars. Bicycle, Motorcycle, E-bike, Tricycle or unknown.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing, DDA Object Counting.
AI (Face Detection): 10 Faces per frame.
D-WDR/BLC/HLC Support.
PoE.
SD Card Support (Up to 256GB).
Audio In + Audio Out + Built-in Microphone .
ONVIF.
IP67.
Weight: 640g.
Power: DC12V/~450mA / PoE/~7W.

FUNCTIONS

Equipped with a 2.8mm fixed lens, this 4MP camera is designed for short-distance surveillance (up to 20m) in indoor
and outdoor scenarios. Fitted with the new “Dual System” technology, the camera can deal with internal anomalies
independently, making it more redundant to software-based issues. The camera offers broad possibilities for Analytics,
from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2,
which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle
brand and much more. The DI-340IPEN-28-V4 camera is here to end false alarms and ensures that your devices are
cyber-protected round the clock with the Check Point protection.

"AI" Video Analytics DDA 2nd Generation

Human Recognition
Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..

Vehicle Recognition
Once the vehicle is detected, you can have a complete description, including the brand, type, and color!

Provision-ISR Artiﬁcial Intelligence

The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artiﬁcial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reﬂective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artiﬁcial Intelligence video analytics functions:

DDA Analytics

Face Detection

Face Recognition

Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notiﬁcations only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.

The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.

Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.

SPECIFICATIONS
Image Sensor	1/3” CMOS (16:9)
Effective Pixels	2592X1520
Electronic Shutter	1/2s ~ 1/100000s
Frame Rate	1-25/30FPS
Day & Night	ICR
Min. Illumination	Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on
Audio compression	G.711A/G.711U
Communication	One-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification
DRI Distance	Detect 60.69m(199.11ft) Recognize 12.14m(39.82ft) Identify 6.07m(19.91ft)
Video Compression	H.265 / H.264 / MJPEG (Substream only)
Resolution	4MP (2592x1520) / 3MP (2304x1296) / 2MP (1920x1080) / D1 / QVGA /CIF
Multi-Stream	Master Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit rate	64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
IR Distance	20m (1 High Power IR LED)
Lens (Field of View)	2.8mm (96°)
Iris	Fixed Iris
Lens Mount	M12 Mount
Protection Rate	Water Proof: IP67
Bracket	3-Axis Bracket
Dimensions	Ø97mm×82.6mm
Weight (gross)	~540g
Network	RJ45 (+PoE)
Power	DC Socket
Analog Video Output	No
Audio Connectivity	Audio in + Aduo out + Built-In Microphone
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Hard Reset Button	Yes
Alarm	Alarm in + Alarm out
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
User Access	Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
ONVIF	Yes
Ethernet	100Mbps
PoE	Yes
Power Supply	DC12V/~450mA / PoE/~7W
Work Environment	-30°C~60°C, 10%~90% Humidity
Junction Box	PR-JB12IP66 - PR-JB12IP64 - PR-WB-A
