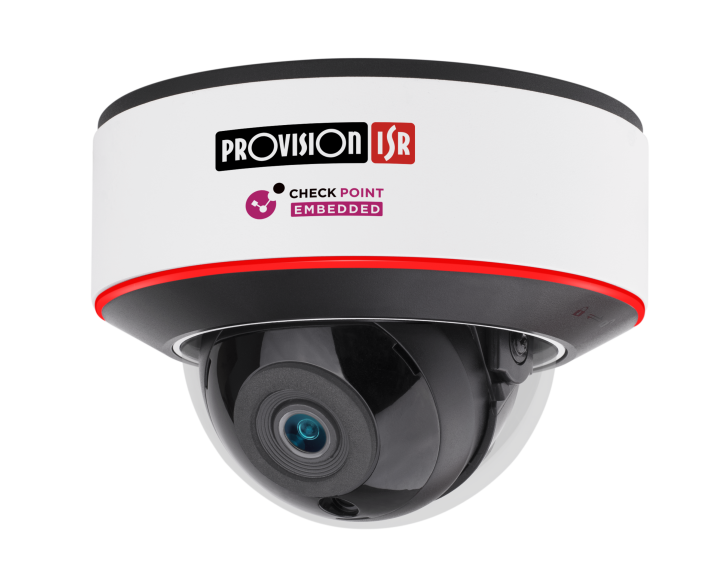

• DAI-320IPEN-28-V4
2MP Vandal Proof Dome Camera,
With Check Point Protection,
DDA 2nd Generation,
2.8mm (99°) Lens, 20M IR.


KEY FEATURES

  • 1/2.8” CMOS.
  • Resolution: 1920x1080/25FPS (2MP).
  • Lens: 2.8mm Mega-Pixel Fixed.
  • True WDR (120dB), BLC, HLC, ROI.
  • IR Range: 20m (2 High-Power IR LED).
  • H.265/H.264 Compression.
  • DDA 2nd generation:
    Distinguishes gender, age, clothing color and accessories on people. Brand, car type and color of cars. Bicycle, Motorcycle, E-bike, Tricycle or unknown.
  • AI (Object Recognition): DDA Sterile Area,
    DDA Line Crossing, DDA Object Counting.
  • AI (Face Detection): 10 Faces per frame.
  • D-WDR/BLC/HLC Support.
  • PoE.
  • SD Card Support (Up to 256GB).
  • Audio In + Audio Out + Built-in Microphone.
  • Alarm In + Alarm Out.
  • ONVIF.
  • IP67, IK10.
  • Weight: 640g.
  • Power: DC12V/~620mA / PoE/~6.3W.


FUNCTIONS




Equipped with a 2.8mm fixed lens, this 2MP anti-vandal camera is designed for short-distance surveillance (up to 20m)
in indoor and outdoor scenarios. Designed to monitor high-security areas (such as banks, hotels, and chain stores) and
capture crime in the act, the DAI-320IPEN-28-V4 features vandal-proof IK10 protection, which makes it extremely hard
to sabotage. Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently,
making it more redundant to software-based issues. The camera offers broad possibilities for Analytics, from Face
Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform
object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more.
The DAI-320IPEN-28-V4 camera is here to end false alarms and, with the Check Point protection, ensures that your devices
are cyber-protected round the clock.

"AI" Video Analytics DDA 2nd Generation


Human Recognition

Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..


Vehicle Recognition

Once the vehicle is detected, you can have a complete description, including the brand, type, and color!



Provision-ISR Artificial Intelligence
The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artificial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reflective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artificial Intelligence video analytics functions:

DDA AnalyticsFace DetectionFace Recognition
Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notifications only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.
The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.
Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.


SPECIFICATIONS
Image Sensor

1/2.8” CMOS (16:9)

Effective Pixels

1920x1080

Electronic Shutter

1/3s ~ 1/100000s

Frame Rate

1-25/30FPS

Day & Night ICR

Min. Illumination

Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on

Audio compression

G.711A/G.711U

Communication

One-way Audio

Image Settings

AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation,
Brightness & Contrast Adjustable

Image Enhancement

True WDR (120dB), BLC, HLC, ROI

Noise Reduction

3D-DNR

Image Orientation

Mirror/Flip

Privacy Zone

Yes

Motion Detection

Yes

Analytics

General Analytics: Camera Tampering
AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting
AI (Face Detection): 10 Faces per frame
AI: Heatmap
DDA2: Advanced Object Classification

DRI Distance

Detect 41.49m(136.12ft)
Recognize 8.30m(27.23ft)
Identify 4.15m(16.30ft)

Video Compression

H.265 / H.264 / MJPEG (Substream only)

Resolution

2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288)

Multi-Stream

Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps)
Substream: 1MP/QVGA/D1/CIF
Third Stream: D1/CIF (1~30fps)

Bit rate

64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264

Encode Mode

VBR/CBR

Image Quality

Five levels under VBR; Free adjustment under CBR

IR Distance

20m (2 High Power IR LED)

Lens (Field of View)

2.8mm (99°)

Iris

Fixed Iris

Lens Mount

M12 Mount

Protection Rate

Water Proof: IP67
Vandal Proof: IK10

Bracket

3-Axis Bracket

Dimensions

Ø119x87.8mm

Weight (gross)

~640g

Network

RJ45 (+PoE)

Power

DC Socket

Analog Video Output

Technician Port

Audio Connectivity

Audio in + Audio out + Built-In Microphone

SD Card

Event/Schedule based Main/Substream recording (Up to 256GB)

Hard Reset Button

Yes

Alarm

Alarm in + Alarm out

Remote Monitoring

IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing,
Ossia VMS Software, Provision Cam2 Mobile App

User Access

Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission

Network Protocol

IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS

ONVIF

Yes

Ethernet

100Mbps

PoE

Yes

Power Supply

DC12V/~620mA / PoE/~6.3W

Work Environment

-30°C~60°C, 10%~90% Humidity

Junction Box

PR-JB12IP66 - PR-WB-A - PR-ICB21
