5MP Vandal Proof Mini Dome Camera,
With Check Point Protection,
DDA 1st Generation,
2.8mm (108°) Lens, 10M IR.

KEY FEATURES

1/2.7” CMOS.
Resolution: 2880x1620/25FPS (5MP).
Lens: 2.8mm Mega-Pixel Fixed.
ICR.
IR Range: 10m (2 High-Power IR LED).
H.265/H.264 Compression.
General Analytics: Camera Tampering.
AI Analytics: Line Crossing, Sterile Area.
Distinguish humans, 4-wheels and 2-wheels.
D-WDR/BLC/HLC Support.
PoE.
SD Card Support (Up to 256GB).
Audio in + Built-in Microphone.
ONVIF.
IP67, IK10.
Weight: 410g.
Power: DC12V/~300mA / PoE/~5W.

FUNCTIONS

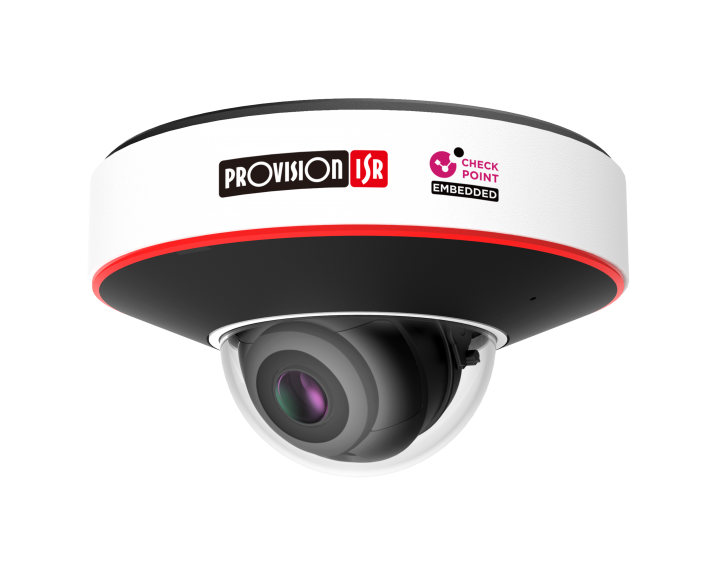

The DMA-350IPSN-28-V4 has a 2.8mm fixed lens and a protective dome. With its 11cm diameter, this
5MP mini-dome camera is designed for short-distance surveillance (up to 10m) in indoor scenarios.
The vandal-proof IK10 protection makes it extremely hard to sabotage. Fitted with the new “Dual System”
technology, the camera can deal with internal anomalies independently, making it more redundant to
software-based issues. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which
can perform human and vehicle recognition. With various detection rules and triggers, the
DMA-350IPSN-28-V4 is here to end false alarms and, with the Check Point protection, ensures that your
devices are cyber-protected round the clock.

Artificial Intelligence by Provision-ISR

Humans

2-Wheels

4-Wheels

Detect. Distinguish. Alert.

DDA™ VIDEO ANALYTICS allows the system to distinguish between humans, 4-wheel vehicles, and 2-wheel vehicles based on smart object recognition technology. Thanks to this technology, the system triggers alarms or sends push noti-fications only when the desired object is detected and, by doing so, reduces annoying false alarms caused by shad-ows, light changes, shaking trees, animals,Etc.

DDA™ Line Crossing

DDA™ Sterile Area

DDA™ People/Vehicle Counting

The user draws a line in the scene and sets the crossing direction
and permissions—for example, Pedestrian only street. If vehicles
are not allowed to enter the road, the system will generate an
alarm only when a vehicle crosses the line. No alarm will be
generated if a human crosses the line.

The user draws an area in the scene and sets access permissions—
for example, No-Parking Zone. If vehicles are not allowed to access
the “No-Parking Area, “ but people are, the system will generate
an alarm only when a vehicle enters the area. In addition, the user
can configure if entering/exiting the area will trigger an alarm.

The user places the camera at a gate entrance/exit for
real-time monitoring—for example, Vehicle Maximum Limit.
The system will count the number of vehicles entering and exiting
the area and alert when the number reaches the maximum limit.

SPECIFICATIONS
Image Sensor	1/2.7” CMOS (16:9)
Effective Pixels	2880x1620
Electronic Shutter	1/25s ~ 1/100000s
Frame Rate	1-25/30FPS
Day & Night	ICR
Min. Illumination	Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on
Audio compression	G.711A/G.711U
Communication	One-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	Digital WDR, BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	General Analytics: Camera Tampering AI Analytics: Line Crossing, Sterile Area
DRI Distance	Detect 59.67m(195.76ft) Recognize 11.93m(39.14ft) Identify 5.97m(19.58ft)
Video Compression	H.265 / H.264 / MJPEG (Substream only)
Resolution	5MP (2880x1620) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1920x1080) / 1MP (1280x720) / D1 (704x576) / QVGA (480x240) / CIF (352x288)
Multi-Stream	Master Stream: 5MP (2880x1620) (1~20fps) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit rate	64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
IR Distance	10m (2 High Power IR LED)
Lens (Field of View)	2.8mm (108°)
Iris	Fixed Iris
Lens Mount	M12 Mount
Protection Rate	Water Proof: IP67 Vandal Proof: IK10
Bracket	3-Axis Bracket
Dimensions	Φ110.4mm×62mm
Weight (gross)	~410g
Network	RJ45 (+PoE)
Power	DC Socket
Analog Video Output	No
Audio Connectivity	Audio in + Built-In Microphone
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Hard Reset Button	Yes
Alarm	No
Remote Monitoring	IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App
User Access	Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
ONVIF	Yes
Ethernet	100Mbps
PoE	Yes
Power Supply	DC12V/~300mA / PoE/~5W
Work Environment	-30°C~60°C, 10%~90% Humidity
Junction Box	PR-WB-A - PR-BJB
