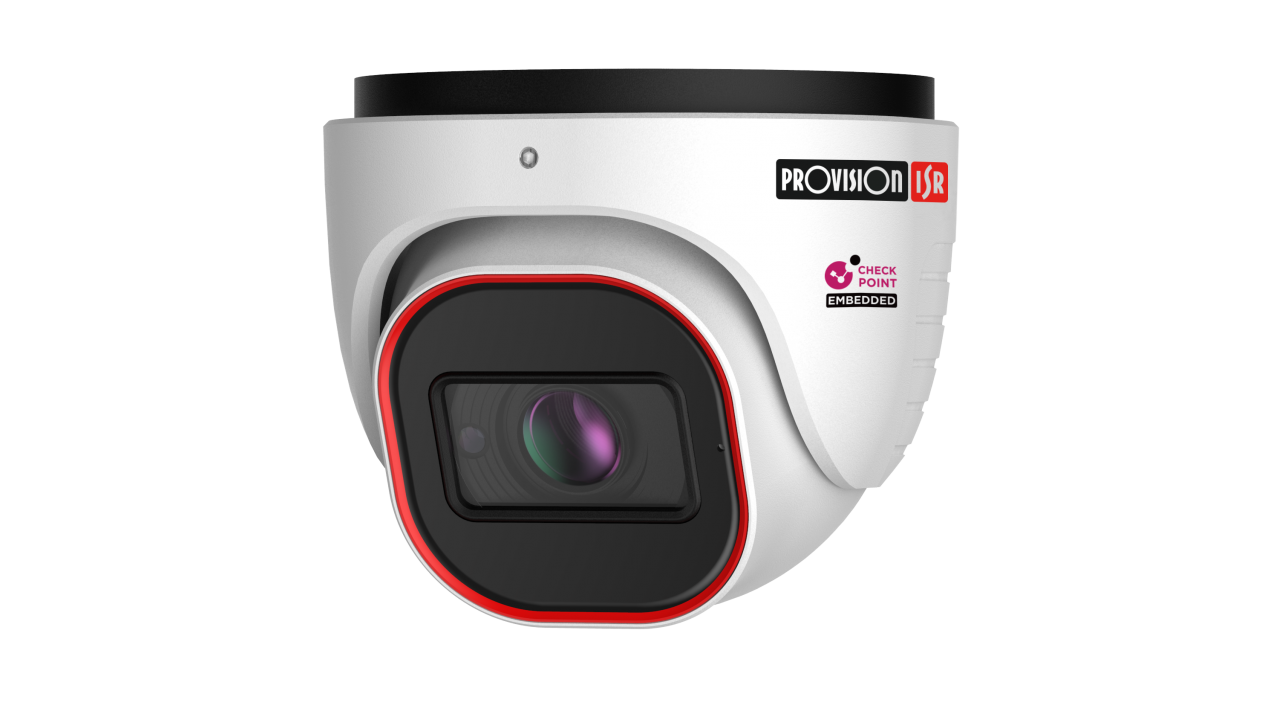

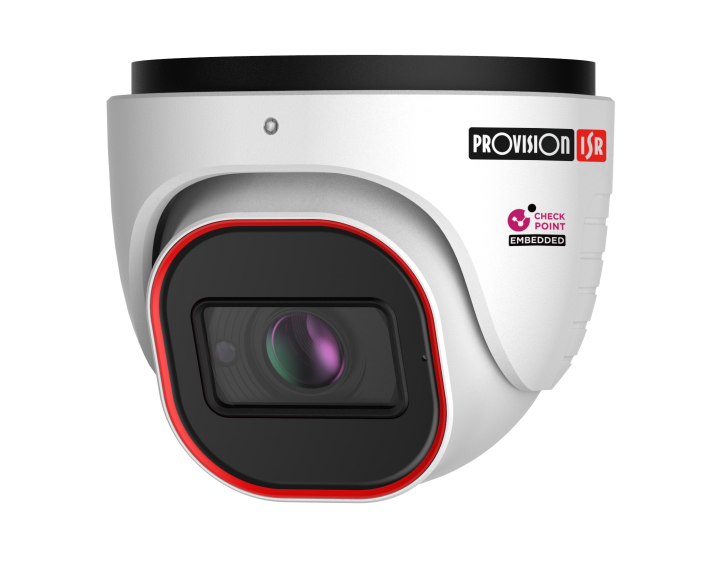

8MP Vandal Proof Turret Camera,
DDA 2nd Generation,
2.8-12mm (96°-32°) Motorized Lens, 40M IR.

KEY FEATURES

1/2.8” CMOS.
Resolution: 3840x2160/20FPS (8MP).
Lens: 2.8-12mm MVF with Auto Focus.
True Day & Night – ICR.
IR Range: 40m (4 High-Power IR LED).
H.265S/H.264S*, H.265+/H.264+/H.265/H.264/
MJPEG Compression.
DDA 2nd generation:
Distinguishes gender, age, clothing color and accessories on people. Brand, car type and color of cars. Bicycle, Motorcycle, E-bike, Tricycle or unknown.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing, DDA Object Counting.
AI (Face Detection): 10 Faces per frame.
True WDR (120dB), BLC, HLC, ROI Support.
PoE.
SD Card Support (Up to 256GB).
Audio Input + Audio Output.
ONVIF.
IP67.
Weight: ~1.040g.
Power: DC12V/~910mA / PoE/~8.2W.

FUNCTIONS

The new Eye-Sight series serves the security professionals who are seeking for a
Professional Line featuring outstanding image quality, full connectivity and
enhanced video analytics functions based on Artificia lIntelligence.
Face detection and object detection have been added to all the Eye-Sight
cameras and run on a new generation powerful AI CPU designed for this purpose.

"AI" Video Analytics DDA 2nd Generation

Human Recognition
Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..

Vehicle Recognition
Once the vehicle is detected, you can have a complete description, including the brand, type, and color!

Provision-ISR Artiﬁcial Intelligence

The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands
of stored reference images of objects in different angles, positions and movements. The Artiﬁcial Intelligence asks itself if the observed object moves like the reference
images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal.
Many other questions are possible, such as the degree to which the object is reﬂective, the degree to which it is steady or vibrating, and the smoothness with which it moves.
Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object.
Provision-ISR Artiﬁcial Intelligence video analytics functions:

DDA Analytics

Face Detection

Face Recognition

Based on smart objects recognition technology,
DDA VIDEO ANALYTICS allows the system to
distinguish between human beings 2-wheeled vehicles and
4-wheeled vehicles. The system triggers alarms or sends
push notiﬁcations only when the desired object is detected
and by doing so reduces annoying false alarms caused
by shadows, light changes, shaking trees, or animals.
With DDA 2nd generation, the system can also
distinguish gender, age, clothing color and accessories
on people. Brand, car type and color of cars.

The camera detects a face in the scene and sends the face
snapshot to the NVR which analyses the face and compares it
to the ones included in the existing database in order to
recognize the person. Provision-ISR second generation of IP
cameras feature great performances. An Eye Sight (V2) camera
featuring face detection is able to detect up to 10 faces in 60
milliseconds while a Smart-Face camera can detect up to 30
faces.

Until now, Face Detection was performed by the Camera and
Face Recognition was performed by the NVR. Provision-ISR
Smart-Face series includes All-in-One cameras performing
both Face Detection and Face Recognition, taking the load off
the NVR and acting as an independent gate operator or
attendance clock.

SPECIFICATIONS
Image Sensor	1/2.8” CMOS (16:9)
Effective Pixels	3840x2160
Electronic Shutter	1/3s ~ 1/100000s
Frame Rate	8MP @ 1-20FPS, 6MP @ 1-20FPS, 5MP @ 1-25/30, 4MP @ 1-25/30, 2MP 1-25/30 in normal mode. 1-50/60FPS in HFR Mode***
Day & Night	True WDR*** (120dB), BLC, HLC, ROI
Min. Illumination	Day: 0.1lux Night: 0.015lux (@F1.4, AGC on) 0lux with IR on
Audio compression	G.711A/G.711U
Communication	One-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advance Object Classification
DRI Distance	Detect: 2.8-12mm(W) 80m(262ft) - 2.8-12mm(T) 273m(896ft) Recognize: 2.8-12mm(W) 16m(52ft) - 2.8-12mm(T) 55m(180ft) Identify: 2.8-12mm(W) 8m(26ft) - 2.8-12mm(T) 27m(89ft)
Video Compression	H.265S/H.264S, H.265+/H.264+/H.265/H.264, MJPEG*
Resolution	8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF
Multi-Stream	Master Stream: 4K(3840x2160) (1~20fps)/ 6MP(3072x2048) / 5MP(2592x1944) / 2K(2560x1440) / 2MP(1920x1080) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps)
Bit rate	64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
IR Distance	40m (4 High-Power IR LED)
Lens (Field of View)	2.8-12mm MVF with Auto Focus (96°- 32°)
Iris	DC Iris
Lens Mount	Ø14 Mount
Protection Rate	Water Proof: IP67
Bracket	3-Axis Bracket
Dimensions	Ø113mm×99.6mm
Weight (gross)	~1.040g
Network	RJ45 (+PoE)
Power	DC Socket
Analog Video Output	No
Audio Connectivity	Audio Input + Audio Output
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Hard Reset Button	Yes
Alarm	No
Remote Monitoring	Edge, Firefox, Chrome, Safari (Plug-In required), Ossia VMS Software, Provision Cam2 Mobile App
User Access	Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
ONVIF	Yes
Ethernet	100Mbps
PoE	Yes
Power Supply	DC12V/~910mA / PoE/~8.2W
Work Environment	-30°C~60°C, 10%~90% Humidity
Junction Box	PR-JB14IP66 - PR-JB14IP64 - PR-WB-A

*Mainstream only, **Substream only, ***1080p, no True-WDR
