16 x 10/100Mbps PoE+ Switch,
2 x Gigabit Or 2 x SFP UPLINK, 250W.

KEY FEATURES

DOWNLINK: 16 x 10/100Mbps-ports.
UPLINK: 2 x Gigabit Or 2XSFP Ports.
250W (Avg: 15,6W Max: 32W per port) .
Internal Power Supply.
Complies with IEEE802.3af/ at Power Over Ethernet.
Distance: Up to 100M
Built-in Surge Protection.
LED Status Monitor.
CCTV-mode:
-up to 250M at 10Mbps
-Vlan function: No communication among DOWNLINK- ports-improve security and data transmission efficiency.
Rack mount bracket included.

FUNCTIONS

Interface
Downlink Ports	16 x 10/100Mbps RJ45 port
Uplink Ports	2 x 10/100/1000Mbps TP/SFP Combo port
SFP Ports	2 x 10/100/1000Mbps
PoE
PoE Ports	16 x (Downlink Ports)
PoE Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
PoE Total Power	250W
Average Power Per Channel	15,6W
Maximum Power Per Channel	32W
Data Processing
Backbone Bandwidth	7.2Gbps
Buffer Size	4Mb
MAC Address Table	16K
VLAN	2 Auto Modes (VLAN / CCTV Modes)

Network Media
EIA/TIA-568	100Ω STP (Maximum 100m)
10BASE-T	UTP Category 3, 4, 5 Cable (Maximum 100m)
100BASE-TX	UTP Category 5, 5e Cable (Maximum 100m)
1000BASE-T	UTP Category 5e, 6, 7 Cable (Maximum 100m)

Special
CCTV Mode	Selectable Standard/CCTV Mode
Surge Protector	Different mode±2KV common mode±4KV
Wall Bracket	No
Rack Bracket	Yes
K-Slot (Anti Theft)	No
Power
PoE Status Monitor	Yes
Power Supply	100-240VAC

Others
Power Consumption	PoE On: 250W Max. / PoE Off: 20W Max.
Fan	Yes
Dimensions	440x207x44mm
Weight	3,1kg
Operating Temperature	-40 °C ~ 70 °C (-40 °F ~158°F )

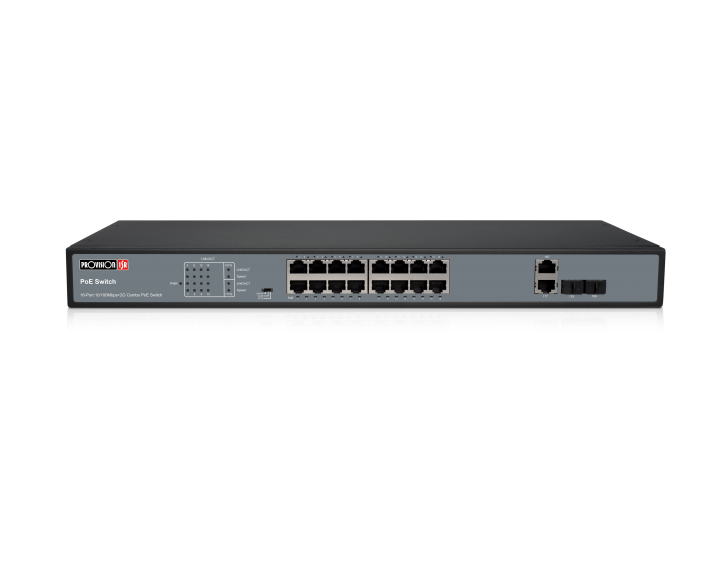

POES-16250C+2Combo-V2
