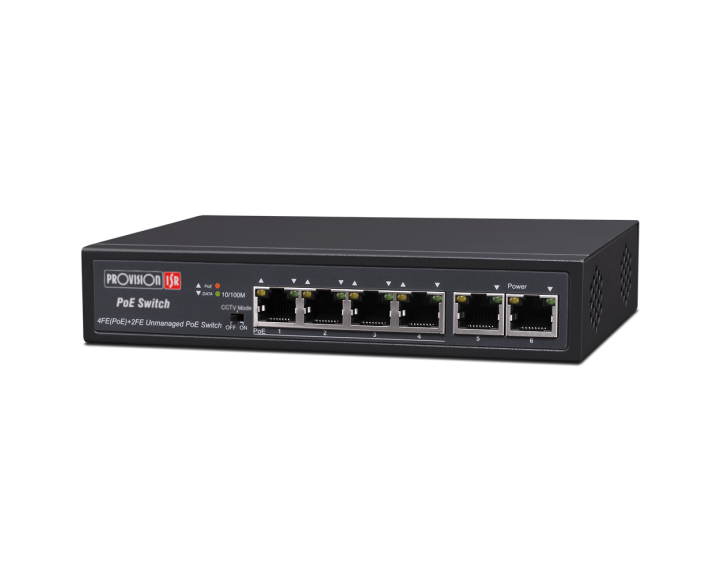

4 x 10/100Mbps Port PoE+ Switch,
2 x 10/100Mbps UPLINK, 60W.

NYCKELFUNKTIONER

DOWNLINK: 4x100Mbps-port.
UPLINK: 2x100Mbps-port.
60W (Avg: 15W Max: 30W per port) .
External Power Supply.
Complies with IEEE802.3af/vid Power Over Ethernet.
Distance: Up to 100M
Built-in Surge Protection.
Built-in Power Supply.
CCTV-mode:
-up to 250M at 10Mbps
-Vlan function: No communication among DOWNLINK-ports-improve security and data transmission efficiency.
Wall Bracket/Anti-Theft Hole (k-slot) Earthling Connector.

FUNKTIONER

Interface
Downlink Ports	4 x 10/100Mbps
Uplink Ports	1 x 10/100Mbps (Powered Device)
SFP Ports	No
PoE
PoE Ports	4 (Downlink Ports)
PoE Standard	IEEE802.3af/at PoE
PoE Total Power	60W
Average Power Per Channel	15W
Maximum Power Per Channel	30W
Data Processing
Backbone Bandwidth	1,2Gbps
Buffer Size	488Kb
MAC Address Table	1K
VLAN	Auto (in CCTV Mode)

Network Media
EIA/TIA-568	100Ω STP (Maximum 100m)
10BASE-T	UTP Category 3, 4, 5 Cable (Maximum 100m)
100BASE-TX	UTP Category 5, 5e Cable (Maximum 100m)
1000BASE-T	Not Supported

Special
CCTV Mode	Selectable Standard/ CCTV Mode
Surge Protector	Built-In
Wall Bracket	Available (Wall installation)
Rack Bracket	No
K-Slot (Anti Theft)	No
Power
PoE Status Monitor	No

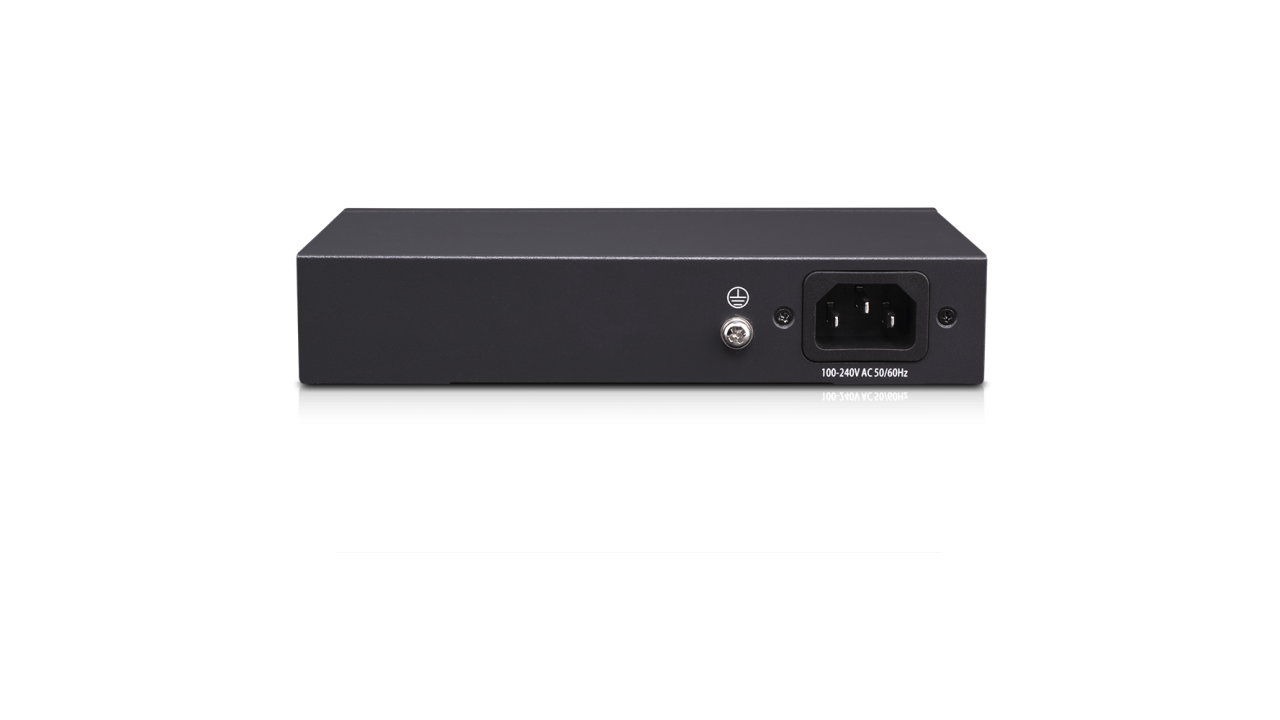

Power Supply	100-240VAC

Others
Power Consumption	PoE On: 63W Max. / PoE Off: 3W Max.
Fan	No
Dimensions	168x94x32mm
Weight	0,85Kg
Operating Temperature	~10°C-50°C

POES-0460C+2I-V2
