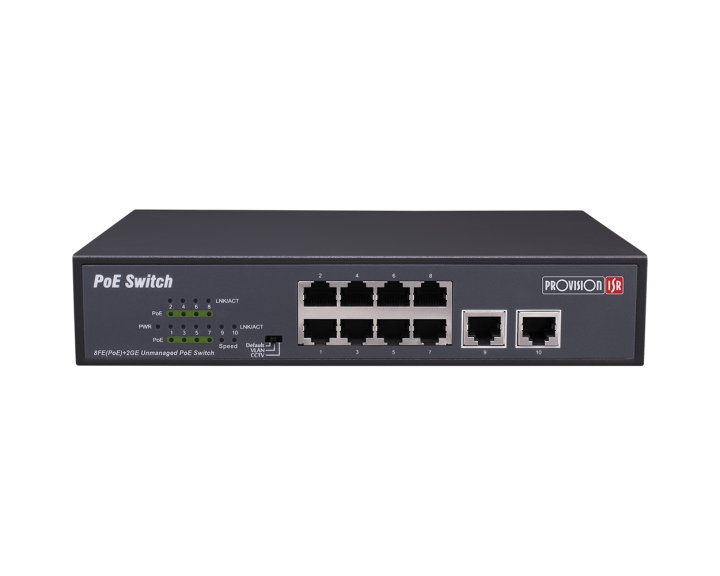

8 x Gigabit Port PoE+ Switch,
2 x Gigabit, 120W.

KEY FEATURES

All Ports act as both Downlink/Uplink
120W (Avg: 15,4W Max: 32W per port) .
Internal Power Supply.
Complies with IEEE802.3af/vid Power Over Ethernet.
Distance: Up to 100M.
Built-in Surge Protection.
CCTV-mode:
-up to 250M at 10Mbps
-Vlan function: No communication among DOWNLINK-ports-improve security and data transmission efficiency.

FUNCTIONS

Interface
Downlink Ports	8x10/100/1000Mbps
Uplink Ports	2x10/100/1000Mbps
SFP Ports-
PoE
PoE Ports	8 (Downlink Ports)
PoE Standard	IEEE802.3af/at PoE
PoE Total Power	120W
Average Power Per Channel	15,4W
Maximum Power Per Channel	32W
Data Processing
Backbone Bandwidth	20Gbps
Buffer Size	2000Kbit
MAC Address Table	8K
VLAN	2 Auto Modes (VLAN/CCTV Modes)

Network Media
EIA/TIA-568	100Ω STP (Maximum 100m)
10BASE-T	UTP Category 3, 4, 5 Cable (Maximum 100m)
100BASE-TX	UTP Category 5, 5e Cable (Maximum 100m)
1000BASE-T	UTP Category 5e, 6, 7 Cable (Maximum 100m) ( For Uplink Ports Only )

Special
CCTV Mode	Selectable Standard/CCTV Mode
Surge Protector	Built-In
Wall Bracket	No
Rack Bracket	No
K-Slot (Anti Theft)No	No
Power
PoE Status Monitor	Yes
Power Supply	100-240VAC

Others
Power Consumption	PoE On: 130W Max. / PoE Off: 10W Max.
Fan	Yes
Dimensions	220x150x44mm
Weight2,3	>1kg
Operating Temperature	0°C-50°C

POES-08120GC+2GI-V2
