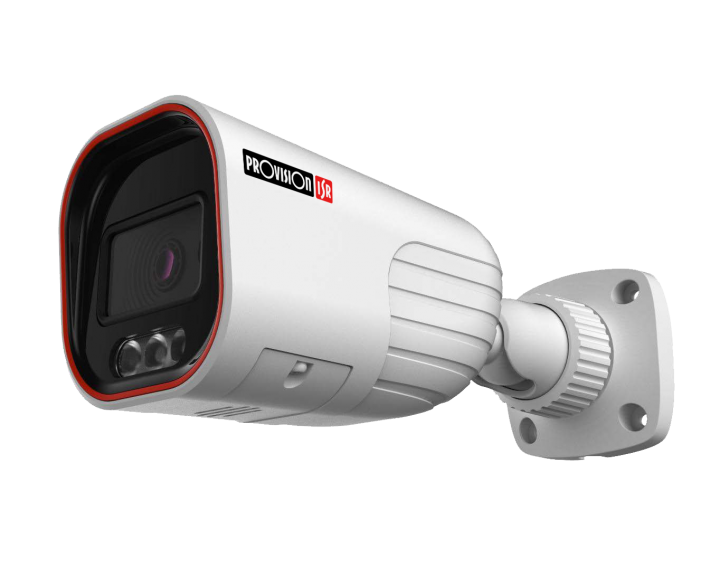

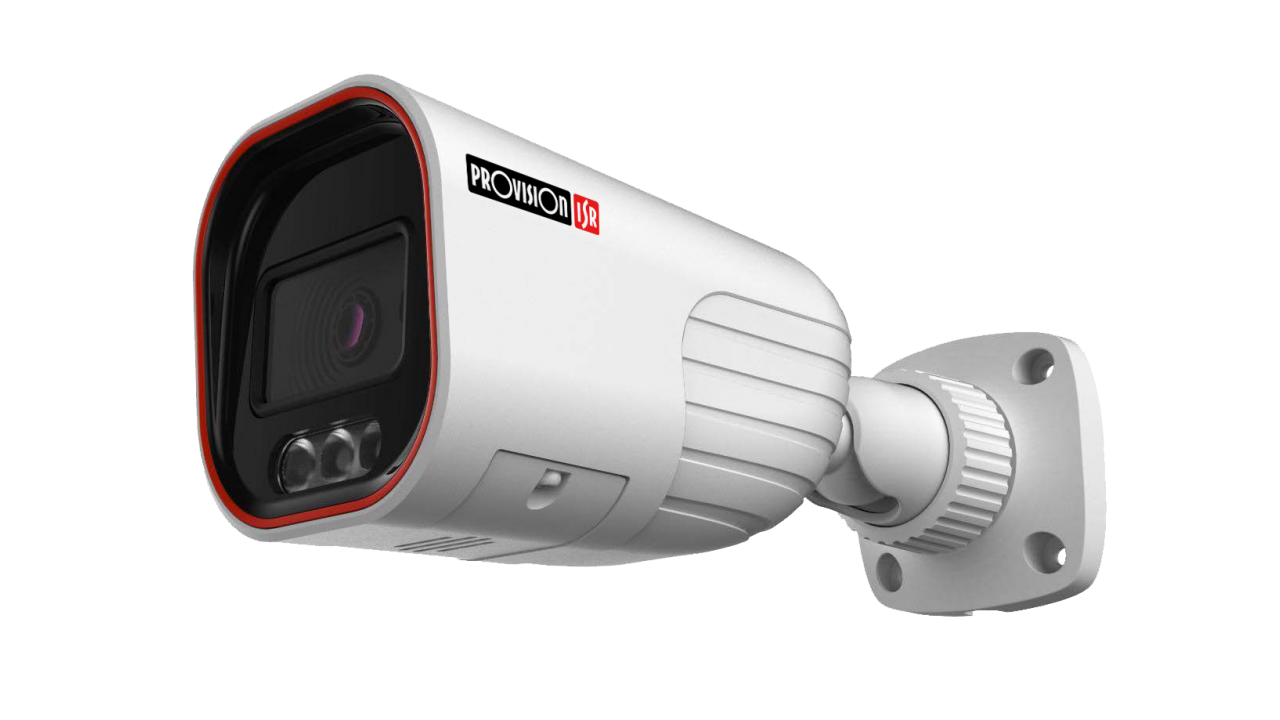

4MP Bullet Camera, Active Deterrence,
2.8-12mm (94.2°-29.8°) Motorized Lens,
40M IR, Full Color

KEY FEATURES

1/3” CMOS.
Resolution: 2592X1520/25FPS (4MP).
Lens: 2.8-12mm MVF with Auto Focus.
True Day & Night – ICR.
IR Range: 40m (2 IR LED Array).
H.265S/H.264S*, H.265+/H.264+/H.265/H.264/
MJPEG Compression.
AI (Object Recognition): DDA Sterile Area,
DDA Line Crossing, DDA Object Counting.
True WDR (120dB), BLC, HLC, ROI Support.
PoE.
SD Card Support (Up to 256GB).
Built-In speaker + Audio Input.
Alarm In + Alarm Out.
ONVIF.
IP67.
Weight: 650g.
Power: DC12V/~780mA / PoE/~7.4W.

FUNCTIONS

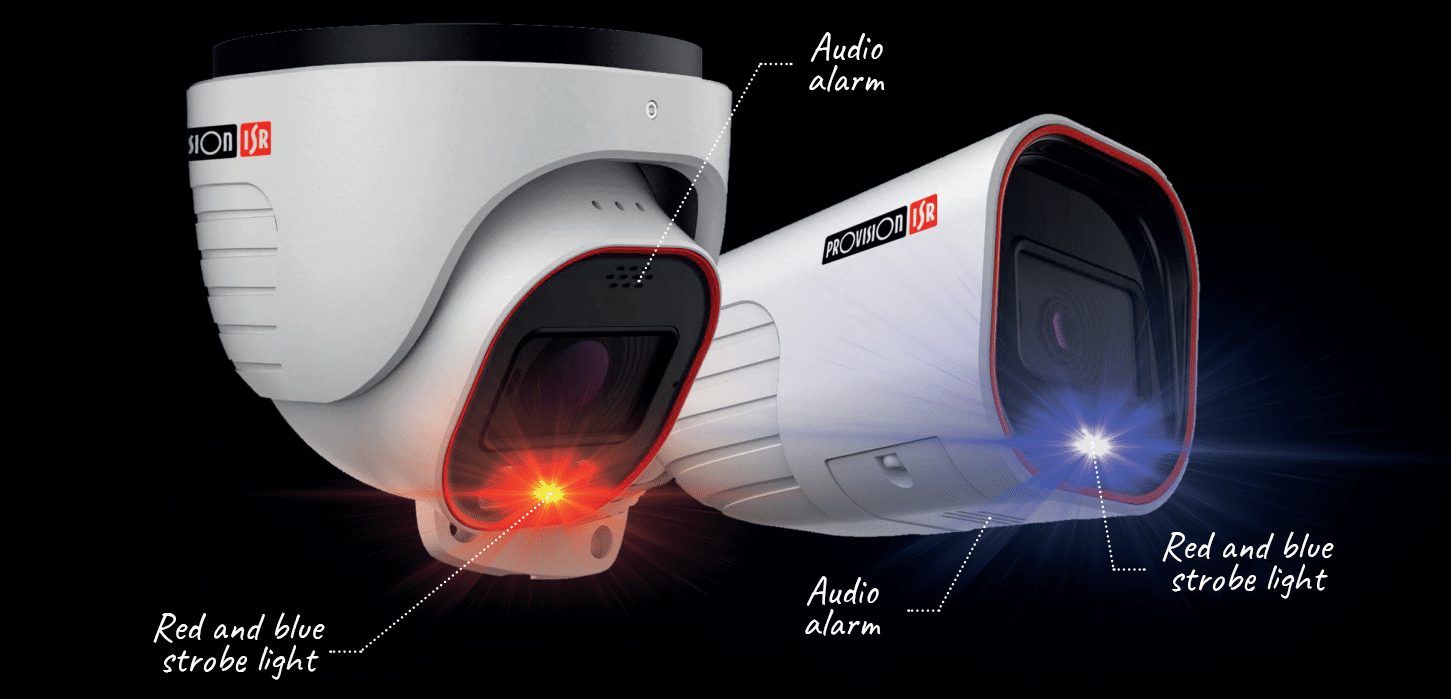

Active deterrence cameras are designed to detect unwanted
visitors and deter them by activating visual and audio alerts.
Equipped with a 2.8-12mm motorized lens, this 4MP bullet camera is designed
for medium distance surveillance (up to 40m) in both indoor and outdoor scenarios.
The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert) which has
the ability to perform object recognition. With a variety of detection rules and triggers,
the camera will let unwanted visitors know that their presence is known and being monitored.

Active Deterrance

"AI" Video Analytics DDA 2nd Generation

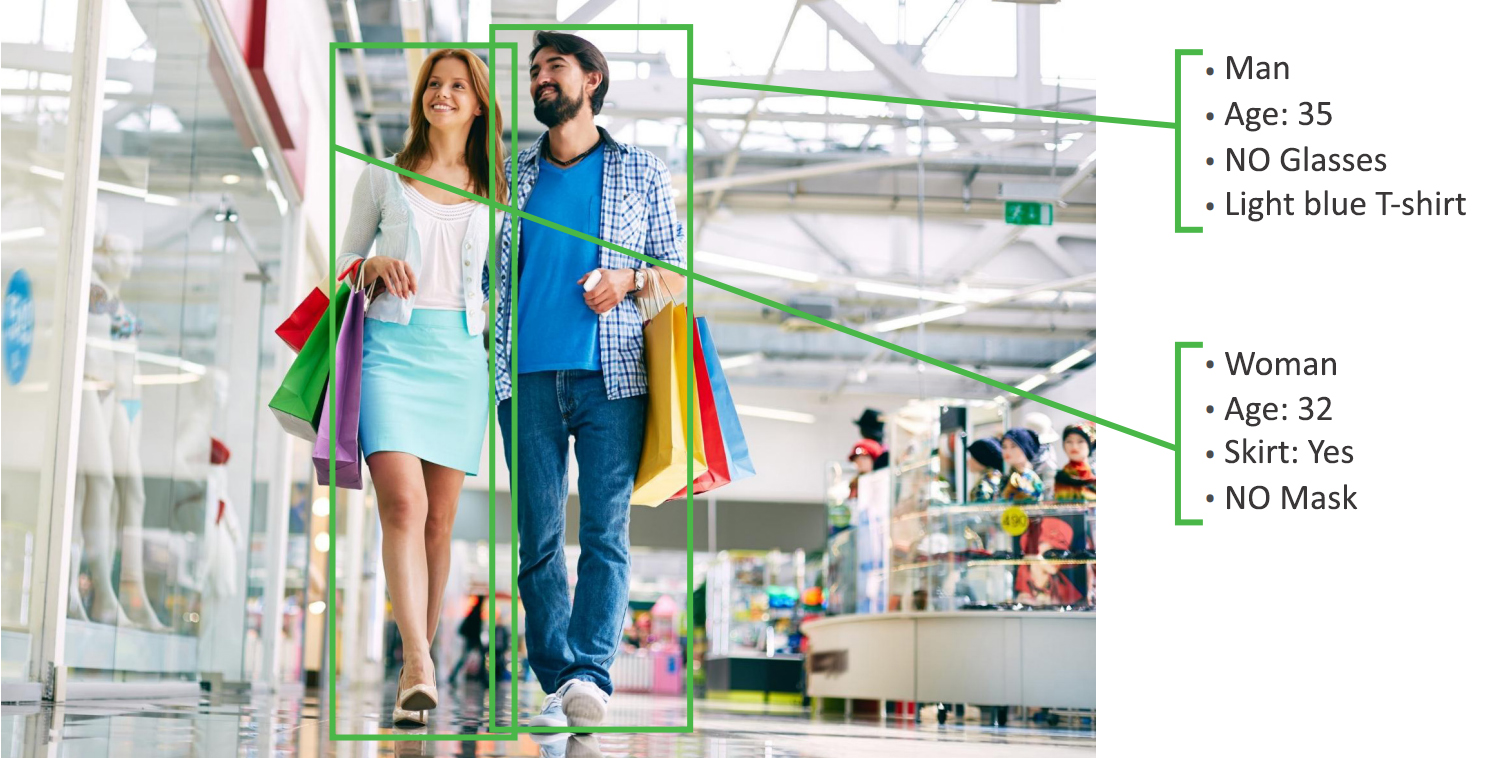

Human Recognition
Amazingly, 2nd generation provides security professionals with personal information such as gender, age, clothes color, and accessories..

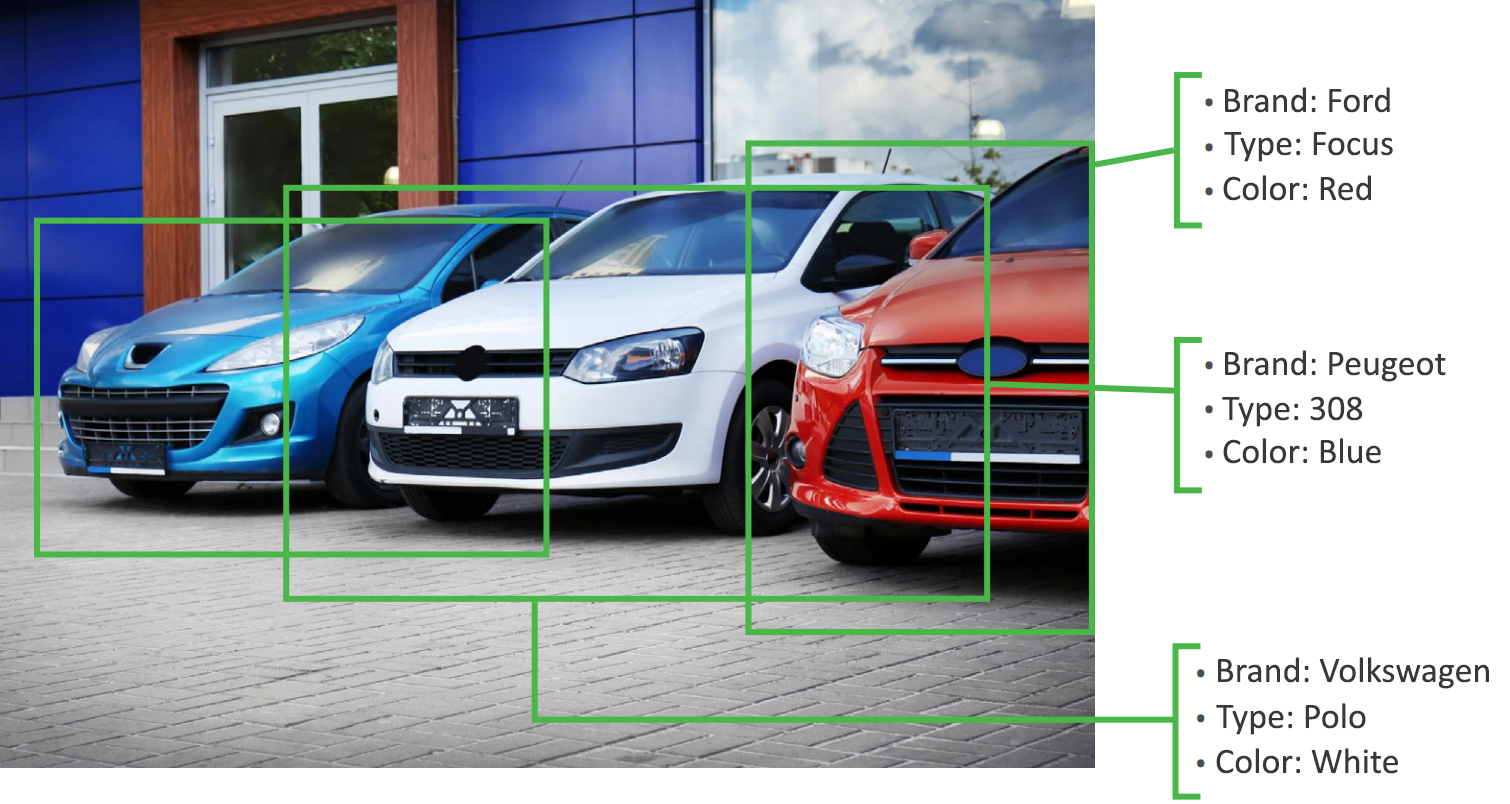

Vehicle Recognition
Once the vehicle is detected, you can have a complete description, including the brand, type, and color!


Provision-ISR Artiﬁcial Intelligence
The A.I. is based on a series of algorithms, or mathematical procedures, which work like a series of questions to compare the object seen with hundreds of thousands of stored reference images of objects in different angles, positions and movements. The Artiﬁcial Intelligence asks itself if the observed object moves like the reference images, whether it is approximately the same size height relative to width, if it has the characteristic two arms and two legs, and if it is vertical instead of horizontal. Many other questions are possible, such as the degree to which the object is reﬂective, the degree to which it is steady or vibrating, and the smoothness with which it moves. Combining all of the values from the various questions, an overall ranking is derived which gives the A.I. the probability that the object is or is not a human, a vehicle or an object. Provision-ISR Artiﬁcial Intelligence video analytics functions:
DDA Analytics	Face Detection	Face Recognition
Based on smart objects recognition technology, DDA VIDEO ANALYTICS allows the system to distinguish between human beings 2-wheeled vehicles and 4-wheeled vehicles. The system triggers alarms or sends push notiﬁcations only when the desired object is detected and by doing so reduces annoying false alarms caused by shadows, light changes, shaking trees, or animals.	The camera detects a face in the scene and sends the face snapshot to the NVR which analyses the face and compares it to the ones included in the existing database in order to recognize the person. Provision-ISR second generation of IP cameras feature great performances. An Eye Sight (V2) camera featuring face detection is able to detect up to 10 faces in 60 milliseconds while a Smart-Face camera can detect up to 30 faces.	Until now, Face Detection was performed by the Camera and Face Recognition was performed by the NVR. Provision-ISR Smart-Face series includes All-in-One cameras performing both Face Detection and Face Recognition, taking the load off the NVR and acting as an independent gate operator or attendance clock.

SPECIFICATIONS
Image Sensor	1/3” CMOS (16:9)
Effective Pixels	2592X1520
Electronic Shutter	1/25s ~ 1/100000s
Frame Rate	1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode
Day & Night	True Day & Night – ICR
Min. Illumination	Day: 0.1lux Night: 0.005lux (@F1.6, AGC on) 0lux with IR on
Audio compression	G.711A/G.711U
Communication	Two-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR (120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting
Video Compression	H.265S/H.264S*, H.265+/H.264+/H.265/H.264/MJPEG
Resolution	4MP / 2K / 3MP / 2MP / 1MP / D1 / QVGA / CIF
Multi-Stream	Master Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit rate	64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
IR Distance	40m (2 High Power IR LED) Red/Blue Strobe light
Lens (Field of View)	2.8-12mm MVF with Auto Focus (94.3°- 29.9°)
Iris	DC Iris
Lens Mount	Ø14 Mount
Protection Rate	Water Proof: IP67
Bracket	3-Axis Bracket

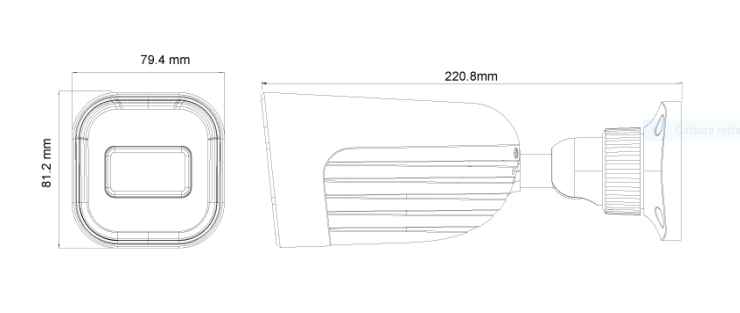

Dimensions	220.8x79.4x81.2mm
Weight (gross)	~650g
Network	RJ45 (+PoE)
Power	DC Socket
Analog Video Output	No
Audio Connectivity	Built-In speaker + Audio Input
SD Card	Event/Schedule based Main/Substream recording (Up to 256GB)
Hard Reset Button	Yes
Alarm	Alarm In + Alarm Out
Remote Monitoring	IE Browsing (Plug-In required), Ossia VMS Software, Provision Cam2 Mobile App
User Access	Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS
ONVIF	Yes
Ethernet	100Mbps
PoE	Yes
Power Supply	DC12V/~780mA / PoE/~7.4W
Work Environment	-30°C~60°C, 10%~90% Humidity
Junction Box	PR-JB12IP66 - PR-JB12IP64
