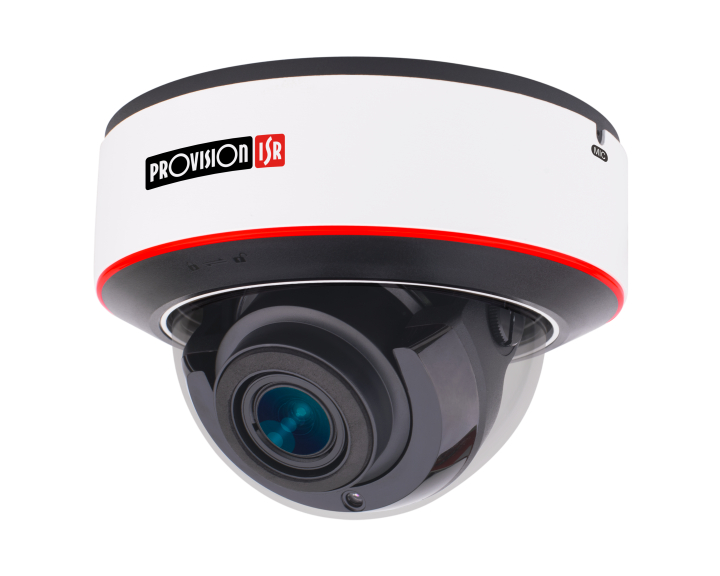

5MP Vandal Proof Dome Camera
2,8-12mm(84°-32°) Motorized
Lens, 40M IR

KEY FEATURES

1/2.7", 5MP
Selectable output-5MP/4MP 4in1 (AHD / CVI -
Excluding 5MP / TVI / CVBS + PAL/NTSC).
2.8-12mm Motorized Lens (84°-32°).
True Day & Night – ICR.
20M IR (1 LED).
3D-DNR.
IP67, IK10.
805g.
DC 12V, ~600mA.

FUNCTIONS

SPECIFICATIONS
Image Sensor	1/2.7" 5MP Sensor
Image Format	5MP - 4:3. 4MP - 16:9
Effective Pixels	2608x1960
Scanning System	Progressive
Resolution	5MP: 2592x1944 AHD/TVI 4MP: 2560x1440 AHD/TVI/CVI CVBS: 700TVL
FPS	25/30FPS
Min. Illumination	Color: 0.01lux @F1.2, AGC ON B/W: 0lux with IR
D&N	True Day&Night-ICR
IR LED	3 LED Array (40m)
OSD Menu	Available via CoC Only
CoC Support	Yes
Day & Night Mode	Ext/Auto/Day/Night
Backlight Compensation	BLC
S/N Ratio	≥52dB (AGC OFF)
White Balance	Auto / Auto->Set
Noise Reduction	3D-DNR
Video Output	5MP / 4MP (Selected by OSD Menu) AHD/TVI/CVI/CVBS + PAL/NTSC (Selected by DIP Switch)
Privacy Mask	No
D-Effect	Mirror + Flip
WDR	Digital
Lens (Field Of View)	2.8-12mm Mega-Pixel Motorized (84°-32°)
Power	DC12V/600mA
Operation Temperature	-30° ~ 50°, 10% ~ 90% humidity
Protection Rate	IP67, IK10
Dimensions	Ф140,9x100,3mm
Net Weight	805g
Junction Box	PR-JB14IP66
