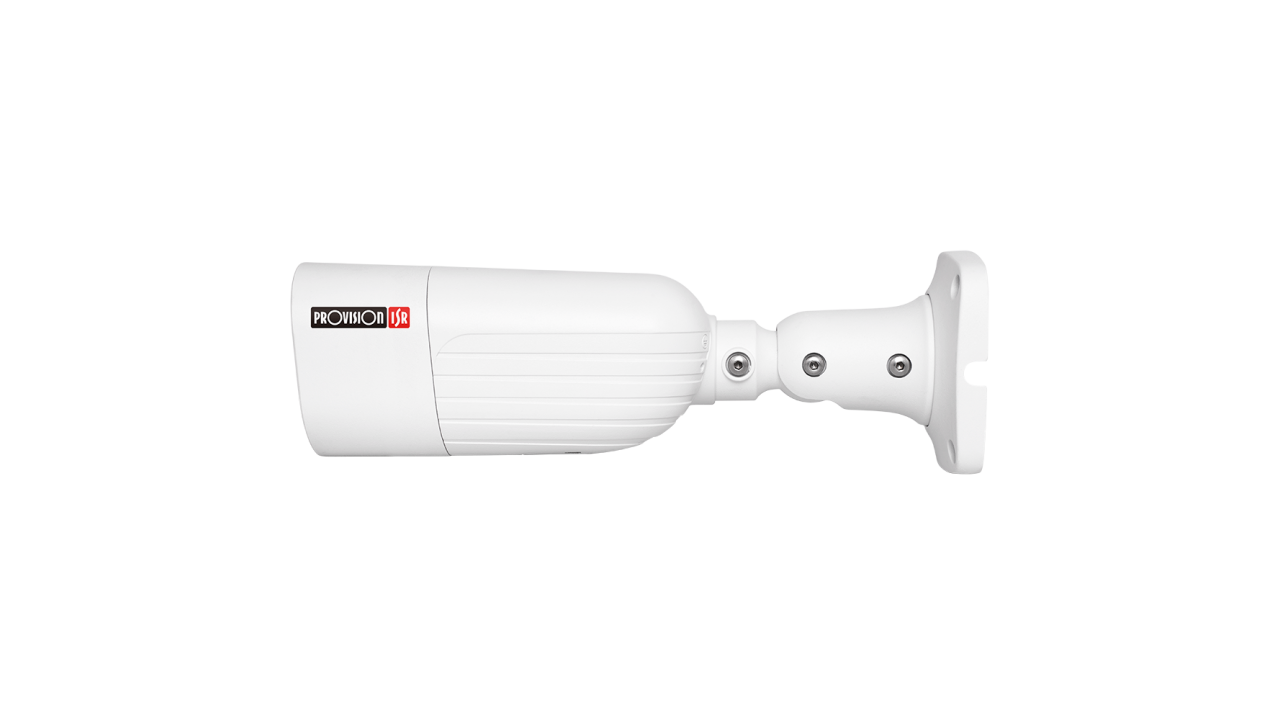

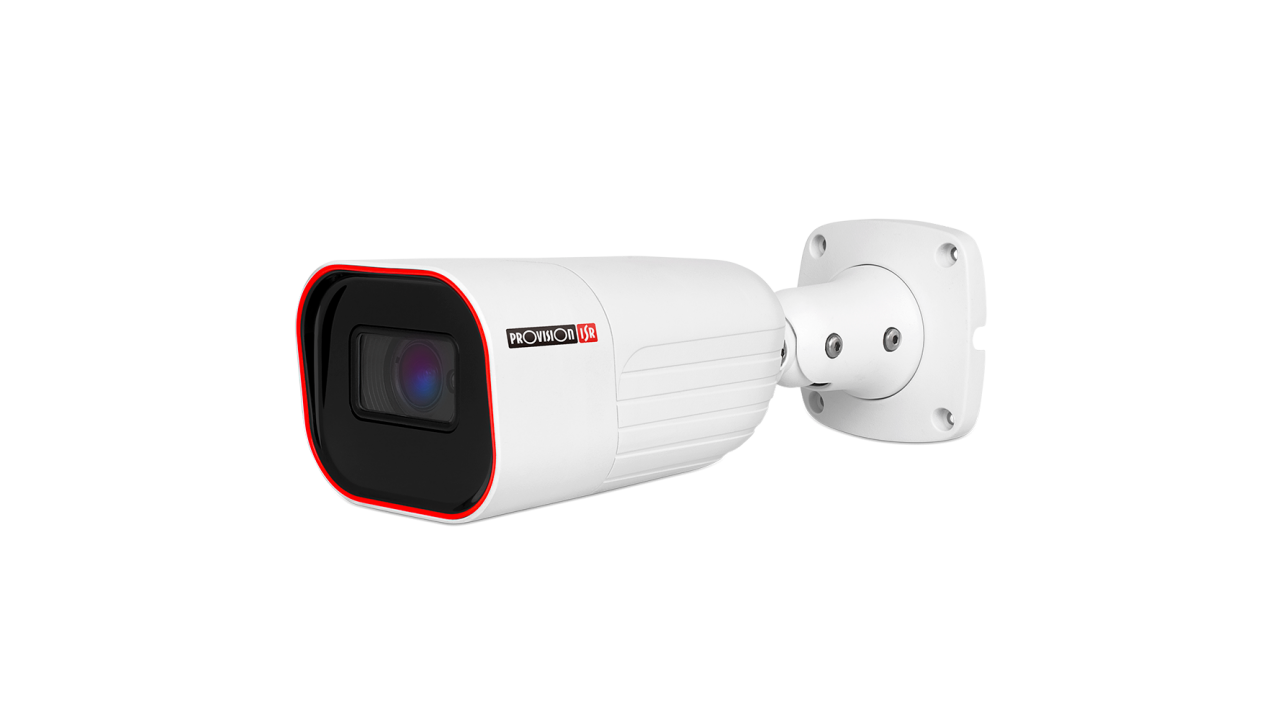

2MP Bullet Camera, LPR 0-70km/h,
7-22mm Motorized Lens, 60M IR

KEY FEATURES

1/2.8” CMOS.
Resolution: 1920x1080/25FPS (2MP).
Lens: 7-22mm Mega-Pixel Motorized.
True Day & Night – ICR.
IR Range: 60m (4 IR LED Array).
H.265/H.264 Compression.
LPR Analytics.
Detection Speed: 0-70Km/h.
Database: Up to 10,000 License Plates (Internal Storage).
True WDR (120dB), BLC, HLC, ROI Support.
PoE.
SD Card Support (Up to 128GB).
Alarm In/Out.
Audio In/Out.
ONVIF.
IP67.
Weight: 1.040g.
Power: DC12V/~910mA / PoE/~8.2W.

FUNCTIONS

Application Scenarios Provision-ISR’s Smart Plate cameras are perfectly suitable for the following applications. GATE CONTROL Provision-ISR's LPR technology comes to the aid of private property, company owners, hotels’ security managers (etc.) by improving the security at the property while also improving the access experience for vehicle drivers when they enter or exit the property. The gate control LPR market segments also include road tolling implementation and parking management. The ability to recognize vehicles plates at parking entrances can provide major benefits for businesses, local authorities, and a wide range of other organizations such as hotels, schools, factories or public parking lots.

Private Houses -Automated access (residents /guests). -CCTV systems upgrade.	Private & Public parking lots -Automated access (company employees, hotel guests…). -CCTV systems upgrade.	Tolls -Automated gate opening enabling free-flow through toll plazas. -CCTV systems upgrade.
STREET SAFETY & CITY SURVEILLANCE Smart cities are not just our future but very much the present. Provision-ISR Smart Plate cameras generally allows to monitor the vehicle traffic in an area. The cameras provide cities authorities the ability to identify suspicious or unauthorized vehicles traveling in and out of their jurisdiction, comparing plate reads to "black" lists.

Street monitoring -Vehicles monitoring. -CCTV systems upgrade.	City monitoring -Monitoring of settlements. -Entrance/Exit. -"Black" listed vehicles notifications.	Petrol stations security -Vehicles monitoring. -CCTV systems upgrade.

SHOB SECURITY MANAGEMENT PLATFORM When the “SHOB” Security Management Platform, meets Provision-ISR LPR cameras the full story can be told: the cameras detect and recognize a vehicles license plate and send the information to the “Shob” platform for parking and access management. The user can exercise full control over the monitored parking areas and easily manage a wide variety of access criteria. MAIN FEATURES -Based on web interface, visually appealing and easy to operate, use, and control. -Built-in installation process, to get the system running ASAP. -Multi-language support. The software interface, extremely complete and intuitive, comes with 9 menu choices:
	LPR QUICK SETUP • Create a parking lot. • Assign the parking lot to one or more companies. • Add LPR cameras to the parking lot. • Add parking spaces. • Add authorized cars.
		LPR CAMERAS • Add/remove LPR cameras. • Replace LPR camera (one click to get it back in action!). • Play live video. • Open the gate manually. • Restore events (data will be taken from the SD card).
	VISITORS • Add visitors’ details (license plate, name, surname, phone number…). • Select the date and time in which you want to reserve the parking space for the visitor. • Add inviter details (company name, parking group…).
		MONITORING AND CONTROL • Get basic information (Company name, Driver name, Camera Location). • Get event list: authorized car / unauthorized car (unknown)/ black list/ parking full / Events received from SD card after connection loss. • Play live video. • Open gate manually. • Check parking lot status.
	PARKING GROUPS • Choose a company from your companies list. • Add a parking group under the selected company. • Each authorized vehicle card can hold up to five different plates. • Delete the parking group whenever you want.
		BLACK LISTS • Add / remove blocked vehicles. (the user will be able to add blocked vehicles to multiple parking lots).
	AUTHORIZED CARS • Add/remove authorized cars. • Ability to import a list of authorized vehicles from an Excel file. • Each authorized vehicle card can hold up to five different plates. • Add companies owning parking spaces. • Create parking groups.
		PARKING SPACES • Choose a company from your companies list. • Add a specific number of parking spaces under the selected company. • Reserve parking spaces to your employees or visitors. • Delete the parking spaces whenever you want.
	LICENSES • Get real time status of your acquired licenses.

SPECIFICATIONS
Image Sensor	1/2.8” CMOS (16:9)
Effective Pixels	1920x1080
Electronic Shutter	1/25s ~ 1/100000s
Frame Rate	1-25/30FPS In Normal Mode 1-50/60BPS in HFR Mode
Day & Night	ICR
Min. Illumination	Day: 0.1lux Night: 0.005lux (@F1.6, AGC på) 0lux with IR on
Audio compression	G.711A/G.711U
Communication	Two-way Audio
Image Settings	AWB, AGC Adjustable, Exposure Mode (Auto),Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement	True WDR(120dB), BLC, HLC, ROI
Noise Reduction	3D-DNR
Image Orientation	Mirror/Flip
Privacy Zone	Yes
Motion Detection	Yes
Analytics	General Alanlytics: Camera Tampering License plate recognition
Rörelsedetektor	Ja
Analys	Allmän analys: Kameramanipulering Registreringsskyltigenkänning
License plate database	LPR (database):10.000 Plate Database
Speed	LPR (detection speed): 0-70Km/h
Accuracy	Recognition rate up to 99% under good conditions
Automation	Can work as a standalone for gate automation
Recognition distance	1.97m-26.87m
Recognition per second	2 plates per second
Triggers	Snapshot / Email / FTP for allow/block lists
Video Compression	H.265S/H.264S*, H.265+/H.264+/H.265/H.264, MJPEG
Resolution	2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288)
Multi-Stream	Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Sub-Stream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps)
Bit rate	64Kbps ~ 8Mbps@H.265 / 64Kbps ~ 12Mbps@H.264
Encode Mode	VBR/CBR
Image Quality	Five levels under VBR; Free adjustment under CBR
IR Distanc	60m (4 High Power IR LED)
Lens (Field of View)	7-22mm MVF with Auto Focus (44°-17.6°)
Iris	DC Iris
Lens Mount	Ø14
Protection Rate	Water Proof: IP67
Bracket	3-Axis Bracket
Dimensions	271.8x92.4x79.4mm
Weight (gross)	~1040g
Network	RJ45 (+PoE)
Power	DC Socke
Analog Video Output	Technician Port
Audio Connectivity	Audio Input + Audio Output
SD Car	Event/Schedule based Main/Sub-Stream recording (Up to 128Gb
Hard Reset Button	Yes
Alarm	Alarm in + Alarm Ou
Remote Monitoring	IE Browsing, CMS Software, Provision Cam2 Mobile App
User Access	Supports simultaneous monitoring for up to 10 users with multi-stream real time transmission
Network Protocol	IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, E-post, FTP, HTTPS, QoS
ONVIF	Yes
Ethernet	100Mbps
PoE	Yes
Power Supply	DC12V/~910mA / PoE/~8.2W
Work Environment	-30°C~60°C, 10%~90% Humidity
Junction Box	PR-JB14IP66 - PR-JB14IP64

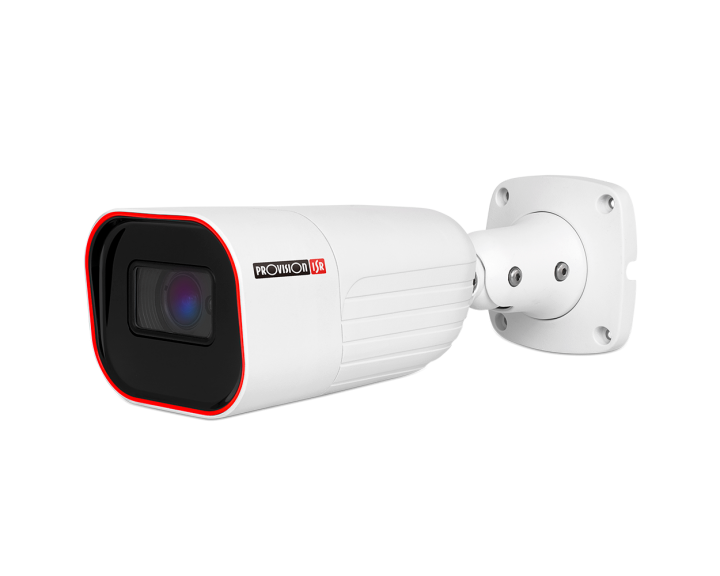

I6-320LPR-MVF2

2MP Bullet Camera, LPR 0-70Km/h,
7-22mm Motorized Lens, 60M IR

PRODUCT SHEET

Manufacturer: Provision ISR
Product Code: 22-040
EAN: 0619317412019
In Stock 3pcs
Available 3pcs
Replacement Product NVIP-2H-6732M/LPR
