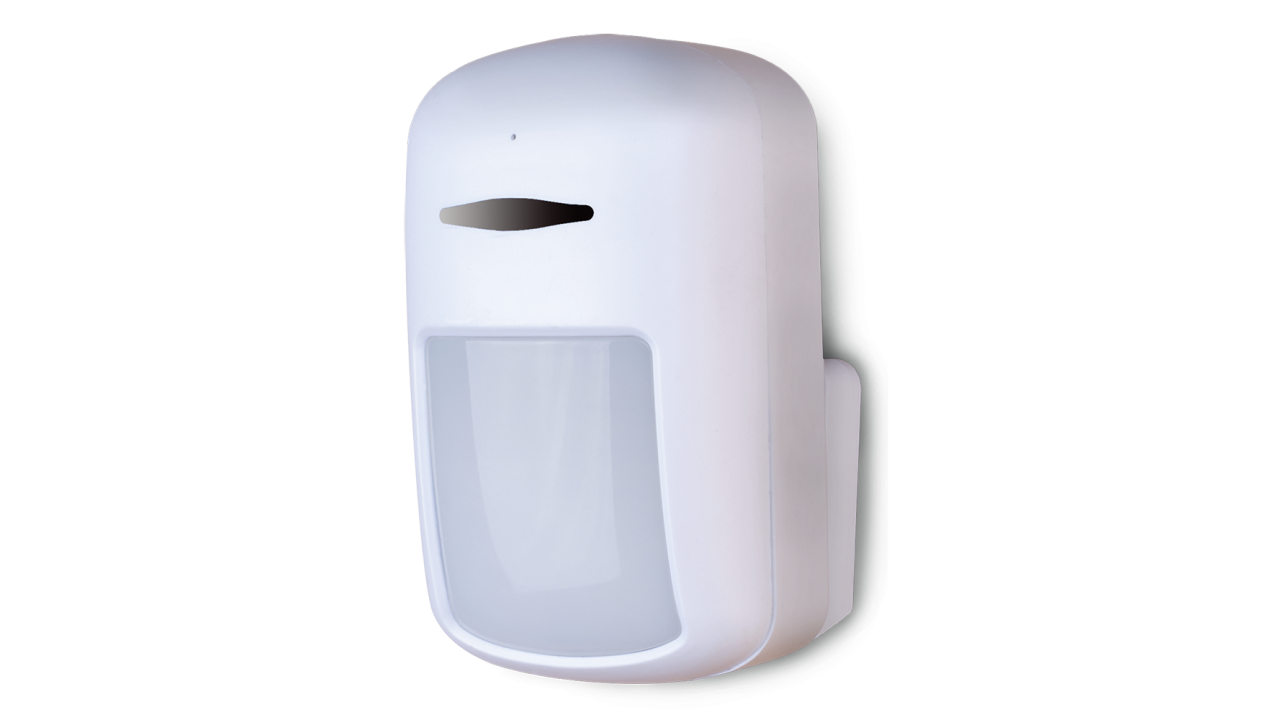

| 2MP Hidden Camera Dummy Pir Housing, 3.7mm (83°) Lens, 10M IR. |
||
|
|
|
| The new Special series serves the security professionals who are seeking for a Professional Line featuring outstanding image quality, full connectivity and enhanced video analytics functions based on Artificia lIntelligence. Face detection and object detection have been added to all the Special cameras and run on a new generation powerful AI CPU designed for this purpose. | ||
| SPECIFICATIONS | |
|---|---|
| Image Sensor | 1/2.8” CMOS (16:9) |
| Effective Pixels | 1920x1080 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.007lux (@F2.0, AGC on) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, |
| Image Enhancement | Digital WDR, BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Analytics: Camera Tampering
|
| Video Compression | H.265 / H.264 / MJPEG (Substream only) |
| Resolution | 2MP (1920x1080) / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
| Multi-Stream | Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps)
|
| Bit rate | 64Kbps ~ 4Mbps@H.265 / 64Kbps ~ 6Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 10m (2 High Power IR LED) |
| Lens (Field of View) | 3.7mm (83°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Protection Rate | - |
| Bracket | 3-Axis Bracket |
| Dimensions | 95x69.5x58mm |
| Weight (gross) | ~269g |

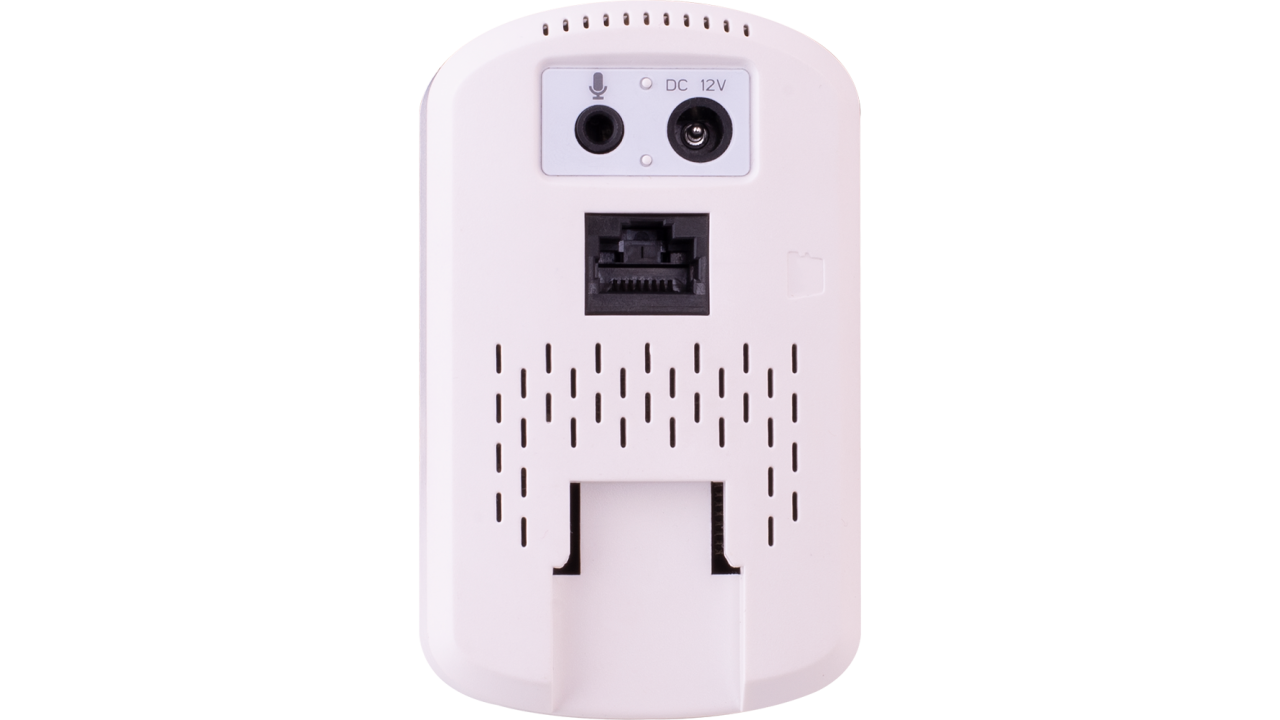

| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | Built-In Microphone + Audio Input |
| SD Card | Event/Schedule based Main/Substream recording (Up to 128GB) |
| Hard Reset Button | No |
| Alarm | No |
| Remote Monitoring | IE Browsing (Plug-In required), Ossia VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring of up to 3 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~420mA / PoE/~4.8W |
| Work Environment | -20°C~50°C, 10%~90% Humidity |
| Junction Box | - |

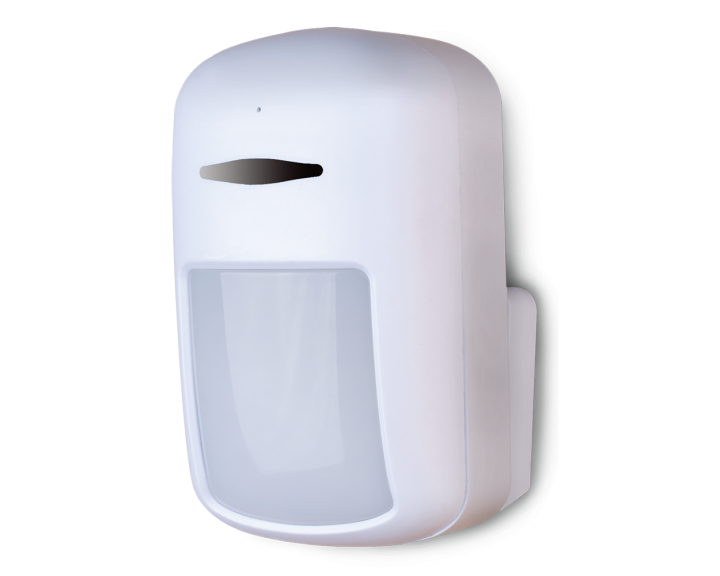

IV-320IPSN-37
2MP Hidden Camera Dummy Pir Housing,
3.7mm (83°) Lens, 10M IR.
PRODUCT SHEET
- Manufacturer: Provision ISR
- Product Code: 22-056
- EAN: 0610840137622
- In Stock 15pcs
- Available 15pcs
Tags: S-Sight
