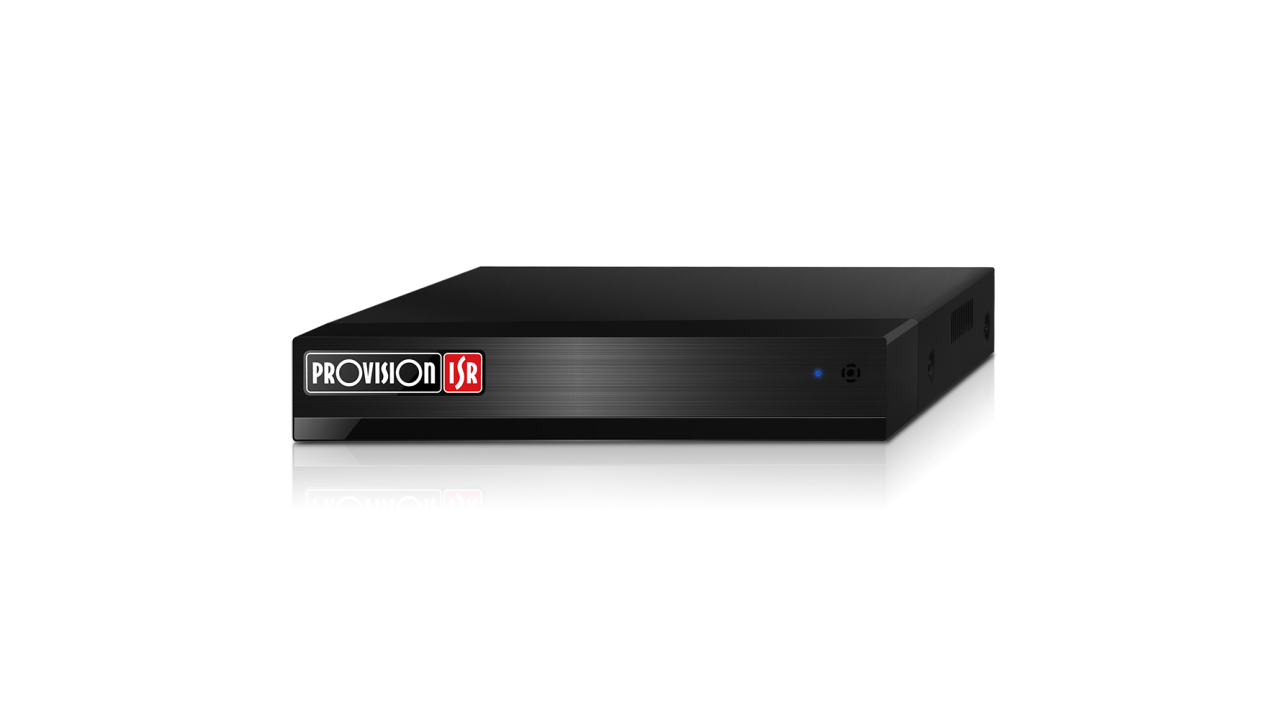

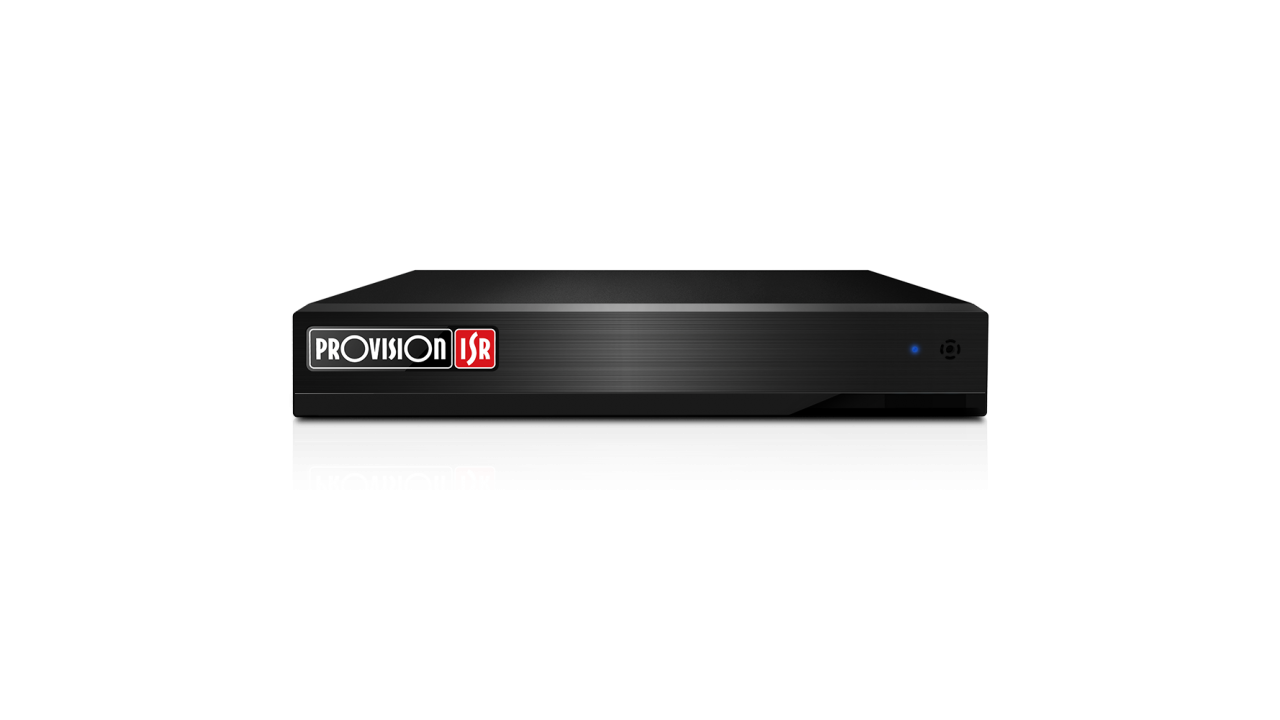

16+8 Channel Hybrid Recorder, 5MP

KEY FEATURES

Video:
Input: 16 Channel Standard BNC + 8 Channel IP (Over Network).
Output: HDMI (1920x1080), VGA (1280x1024, 1024x768, CVBS (Spot).
Recording:
IP: 5MP and lower: 30/25fps Per Channel.
AHD: 5MP Lite: Up to 10fps Per Channel, 4MP Lite / 2MP: Up to 12/15fps Per Channel,
2MP Lite / 1MP: Up to 25/30fps Per Channel.
TVI: 5MP Lite: Up to 10fps Per Channel, 4MP Lite / 2MP: Up to 12/15fps Per Channel,
2MP Lite / 1MP: Up to 25/30fps Per Channel.
CVI: 4MP Lite / 2MP: Up to 12/15fps Per Channel, 2MP Lite / 1MP: Up to 25/30fps Per Channel.
Playback:
16 Channel Simultaneously (Local).
16 Channel Simultaneously (Remote).
Analytics:
For IP Channels: Line Crossing (With Direction Choice), Steril Area, Item Monitoring,
Camera Tampering, Smart Search.
For HD Analog Channels: Line Crossing (No Direction Choice), Steril Area, Smart Search.
Bandwidth:
Incoming: 32Mbps
Outgoing: 80Mbps
Audio:
Input: 1 Channel (RCA) + IP Camera inputs.
Output: 1 Channel (RCA) + IP Camera outputs.
2 Way audio.
Storage:
1 x Sata (Up to 6TB).
USB Port:
2 x USB2.0.
Network:
RJ-45: 100Mbps.
Alarm:
IP Camera inputs.
IP Camera outputs.
PTZ/Keyboard:
Connections: RS-485 / CoC / IP-Over Network.
Supported Protocols: Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC.

FUNCTIONS

GENERAL
Technology	Hybrid DVR
Video Compression	H.265 (HEVC) / H.264
Audio Compression	G.711u
Recording Mode	Main Stream Only
ONVIF	IP Channels Only
Format	“All in 1” Hybrid (AHD / CVI / TVI / CVBS + IP)
VIDEO

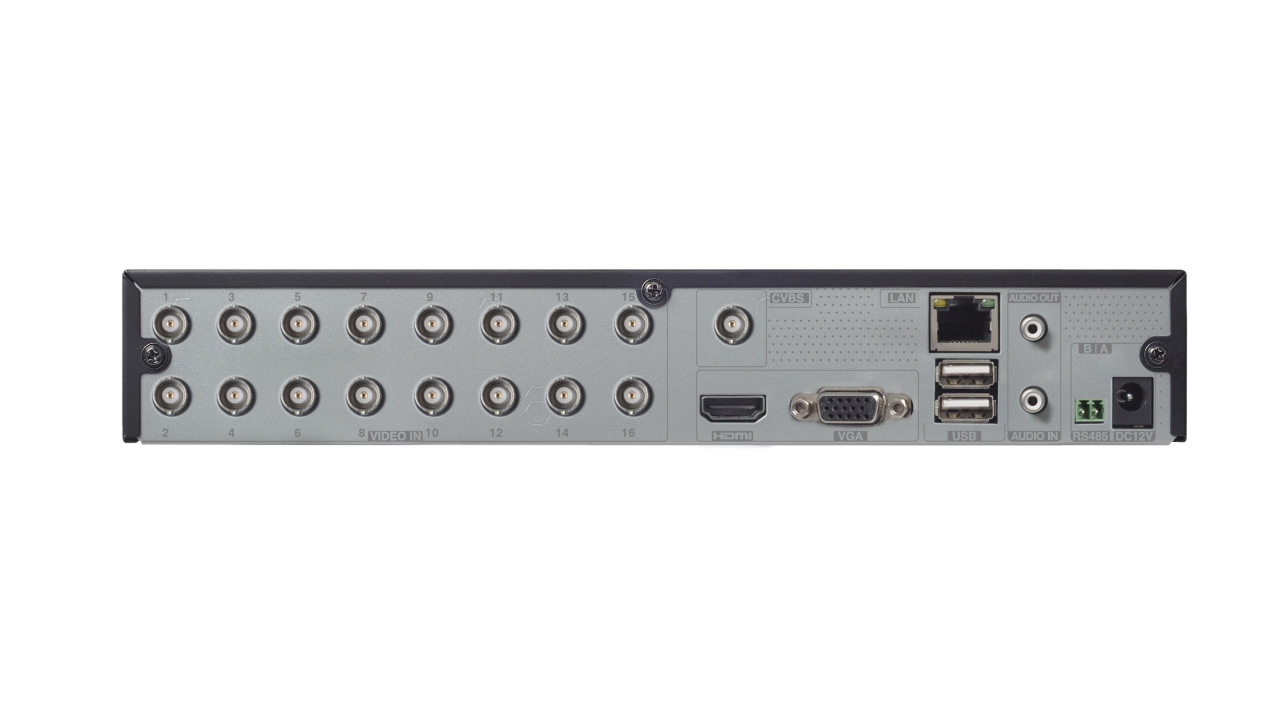

Input	16 Channel Standard BNC + 8 Channel IP (Over Network)
Output	HDMI(1920x1080), VGA (1280x1024, 1024x768), CVBS(Spot)
Spot	Mirrored
AUDIO
Input	1 Channel RCA (2.0 Vp-p, 1 kΩ) (+IP Cameras)
Output	1 Channel RCA (2.0 Vp-p, 1 kΩ) (+IP Cameras)
Two Way Audio	Yes
MAIN RESOLUTION & FPS
IP	5MP And Lower: 30/25fps Per Channel
AHD	5MP Lite: Up To 10fps Per Channel, 4MP Lite / 2MP: Up To 12/15fps Per Channel, 2MP Lite / 1MP: Up To 25/30fps Per Channel
TVI	5MP Lite: Up To 10fps Per Channel, 4MP Lite / 2MP: Up To 12/15fps Per Channel, 2MP Lite / 1MP: Up To 25/30fps Per Channel
CVI	4MP Lite / 2MP: Up To 15/12fps Per Channel, 2MP Lite / 1MP: Up To 25/30fps Per Channel
CVBS	Not Supported
Master Streams Over Network	16 Channels
NETWORK (SUB-STREAM) RESOLUTION & FPS
IP	1-25/30fps@D1 Per Channel
HD Analog	1-25/30fps@720P Per Channel (fps Restricted To Master Stream fps)
CVBS	1-25/30fps@D1 Per Channel
Sub-Streams Over Network	Up To Outgoing Bandwidth Capacity
GENERAL
User Access	5 Users Online With Professional Autority Management
Recording Modes	Schedule, Manual, Motion, Sensor, Analytics, POS
Applications	Provision Cam2 For iOS/Android, IE, Ossia VMS For Windows/MAC
BANDWIDTH
Incoming	32Mbps
Outgoing	80Mbps
PLAYBACK
Local	16 Channels
Remote	16 Channels
Search Modes	Time-Slice, Time, Event, File Management, Smart Search
ANALYTICS
Analytics Support	Yes (Pixel Based)
For AHD Cameras	Line Crossing (No Direction Choice), Sterile Area, Smart Search
For IP Cameras	Line Crossing (With Direction Choice), Sterile Area, Item Monitoring, Camera Tampering, Smart Search
BACKUP
USB	2 USB 2.0 Port
Backup File Format	AVI/DAT
ALARM
Alarm-In	IP Cameras Only
Alarm-Out	IP Cameras Only
Alarm Box Support	I/O-1606
STORAGE
Internal storage	Available mount: 1 x HDD 3.5” SATA
E-SATA	No
Total Internal Capacity	6 TB
PTZ
Connection	1 x RS-485 / CoC / IP-Over Network
PTZ Protocols	Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC
PTZ Functions	Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
NETWORK
Network Interface	1 x Ethernet - RJ-45 interface, 10/100 Mbit/s
Network Protocols Support	TCP/IP, DHCP, DDNS, NTP, SMTP, RTSP, HTTPS, FTP, SNMP, P2P, POS
OTHERS
Dimensions (mm)	W255 x D220 x H43
Power Supply	12VDC (100 ~ 240 VAC/12VDC/2A PSU In-Set Included)
Operating Temperature	0°C ~ 50°C

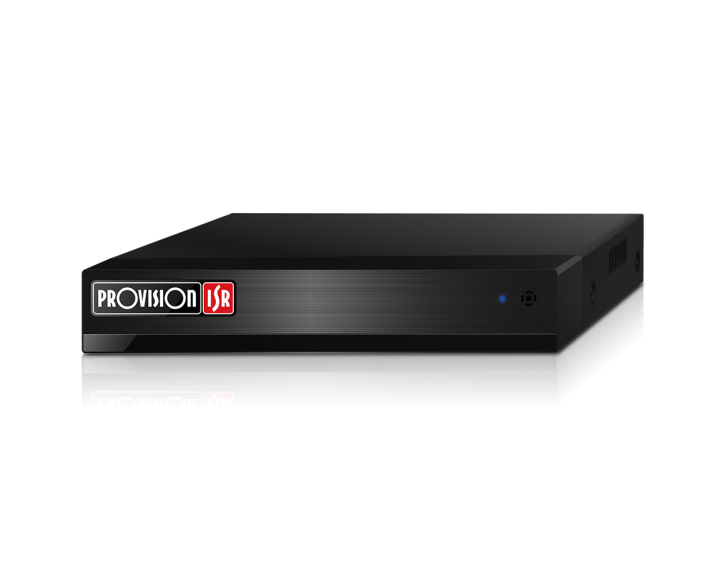

SH-16200A5N-5L(MM)

16+8 Channel Hybrid Recorder, 5MP

PRODUCT SHEET

Manufacturer: Provision ISR
Product Code: 22-151
EAN: 0619317411753
In Stock 4pcs
Available 4pcs
Replacement Product SH-16200A5N-5L(MM)-V2
