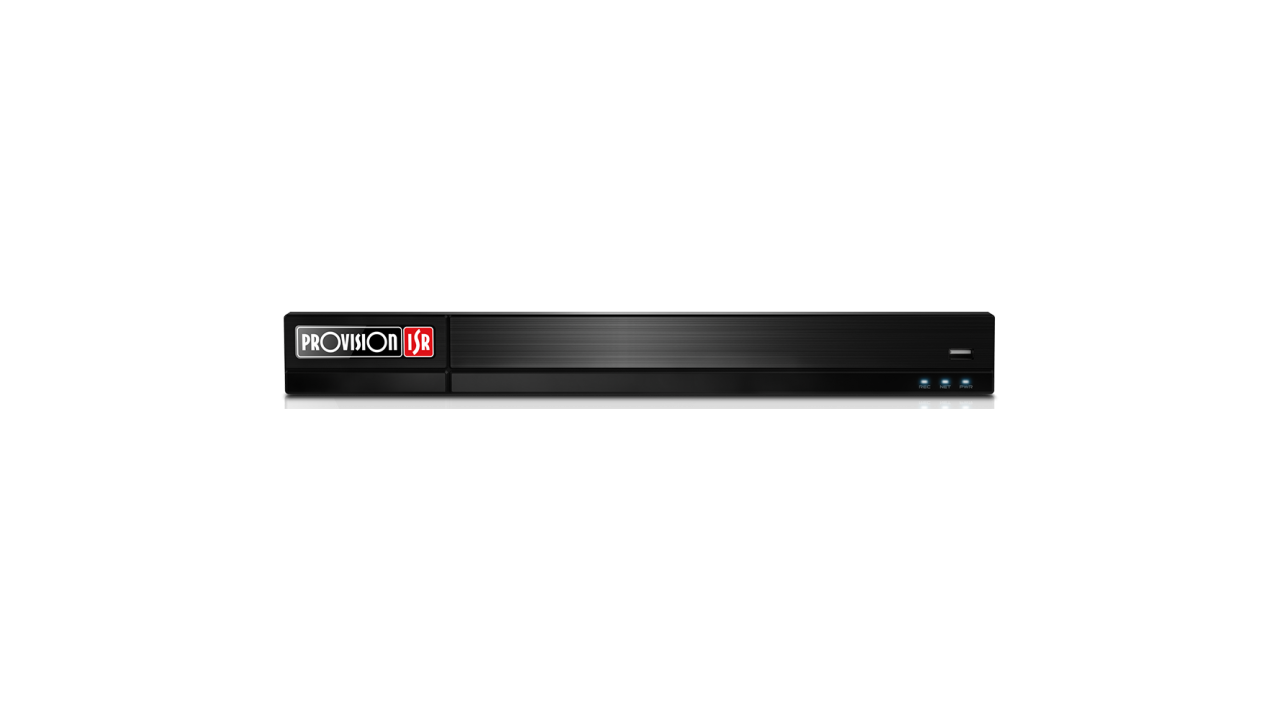

web-1280x720.png "DEC-0104(1U)")

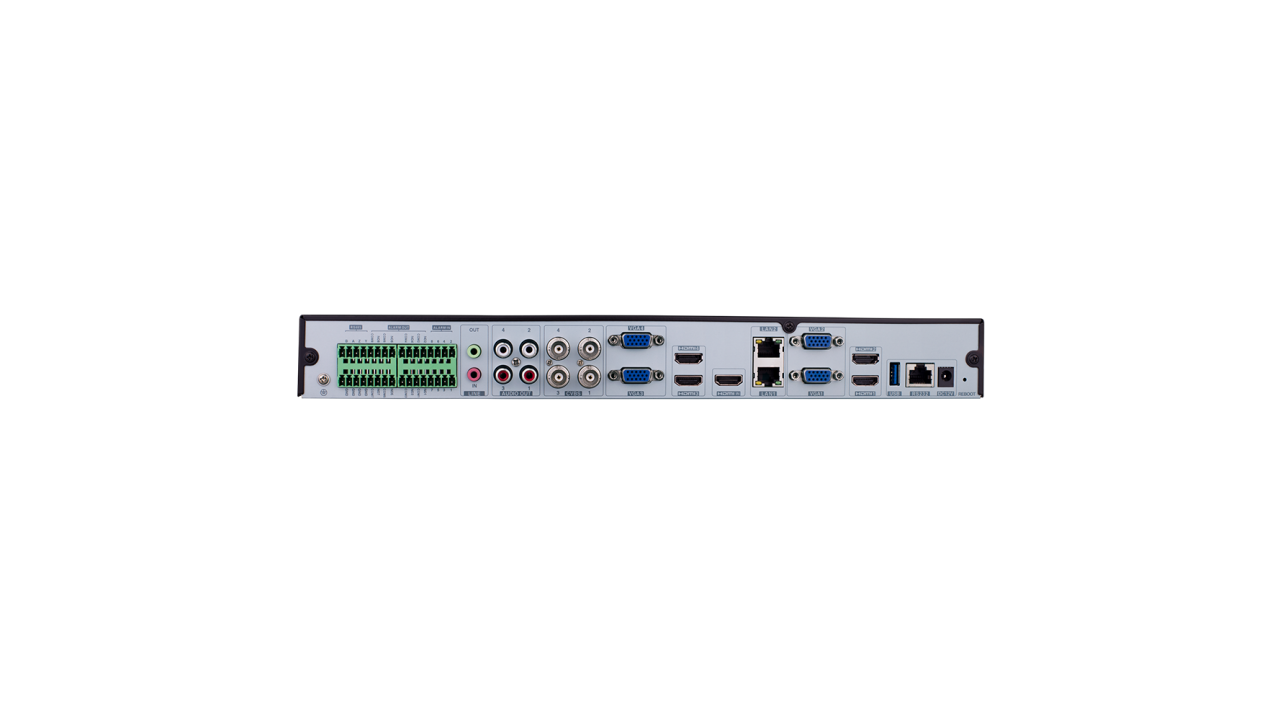

web-back-1280x720.png "DEC-0104(1U)")
| 144 Canal Video Decoder, 4 Monitor Outputs, HDMI Input, 1U Case 2x 1000Mbs Network |
| SPECIFICATIONS | |
|---|---|
| Standalone | In Standalone mode, the user can add IP cameras |
| Ossia CMS Platform | In Ossia CMS Platform mode, the decoder will be added to the Ossia CMS platform. All devices and task assignment are done via the Ossia CMS clients |
| Display Output | 2xHDMI (4K/1080P/1280x1024), 2xHDMI (1080P/1280x1024) 4xVGA (1080P/1280x1024) 4xCVBS (Analog) |
| Display Input | 1xHDMI (Up to 1080P) |
| Audio Output | 4xRCA |
| Two-Way Audio | 1xAudio input,1xAudio output (3,5mm audio interface, |
| LAN | 2x1Gbps (Load Balancing and Hot Standby) |
| USB | 1xUSB3.0+1xUSB2.0 |
| Alarms | 8xInput+8xOutput |
| Serial Ports | 1xRS-485, 1xRS-232 |
| Decoding Resolution | 8MP/5MP/4MP/2MP/1MP/WD1/D1/CIF |
| Video Decording Format | H.265/H.264 |
| Audio Decoding Format | G.711A/G.711U |
| Decoding Capability ( Total Viewed Channels) | 4Ch-UP to 8MP |
| FPS | 1-50FPS (PAL), 1-60FPS(NTSC) |
| Screen Display Modes | 1/4/9/16/25/36 |
| Local Decoding Capability | 144ch |
| Installation | Standard 19" Rack Mount |
| Power | 12VDC/2A |
| Operation Temperature | Working: -20°C~50°C |
| Protection Rate | None (Indoor Installation) |
| Dimeensions | 380*268*45mm |
| Net Weight | ~2Kg |

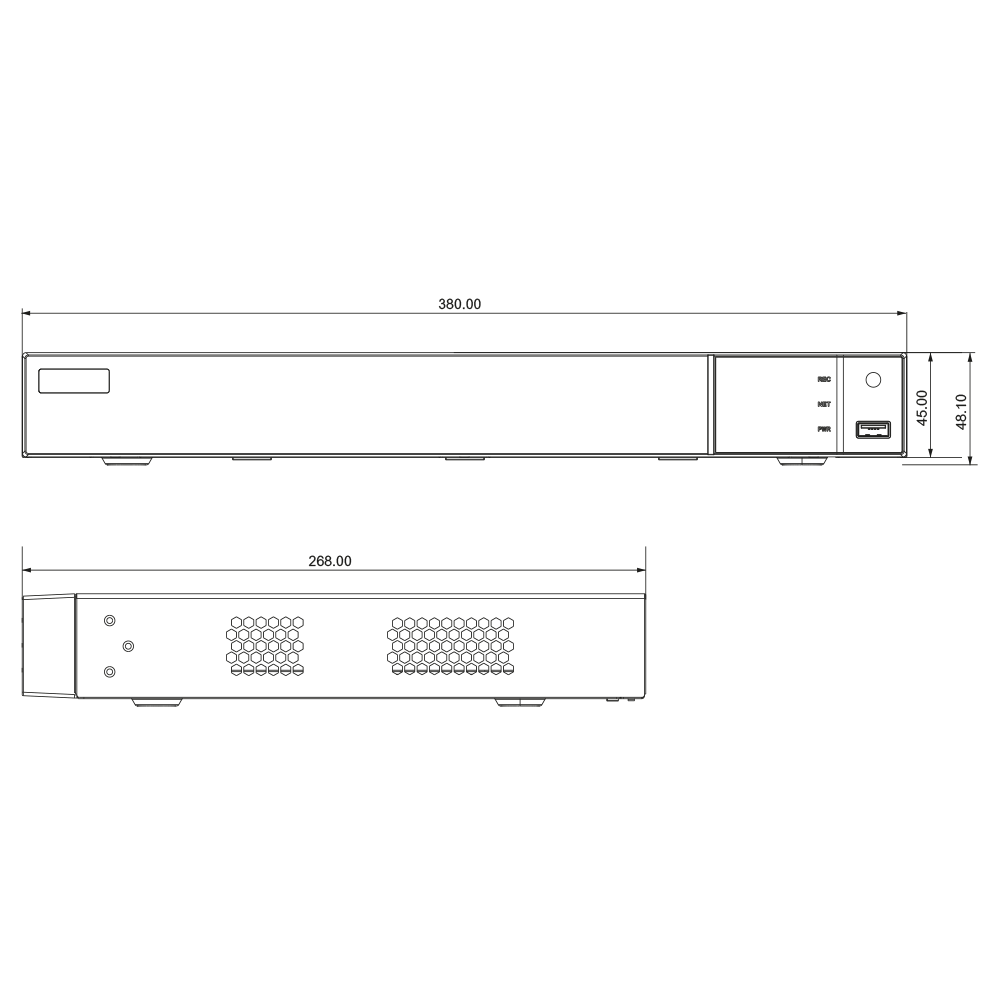

web-draw.png)

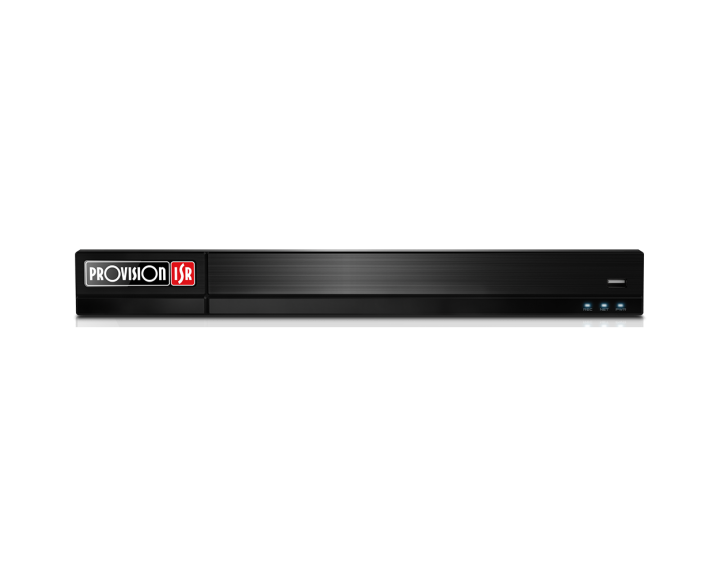

DEC-0104(1U)
144 Canal Video Decoder, 4 Monitor Outputs, HDMI Input, 1U Case, 2xGigabit Network
PRODUCT SHEET
- Manufacturer: Provision ISR
- Product Code: 22-255
- EAN: 0619317412033
- In Stock 4pcs
- Available 2pcs
