KEY FEATURES
- 8 x Ethernet PoE - RJ-45 interface, 10/100Mbit/s.
- Video and audio channels: 8.
- Supported protocols: ONVIF, RTSP
- Recording speed up to 240fps at 3840x2160.
- Supports resolution up to 3840x2160.
- Recorded stream size: 80Mb/s in total from all cameras.
- Internal HDDs mount: 1.
- Monitor outputs: 2 (HDMI, VGA).
- IPGO - extremely easy adding and configuring IP cameras with DVR menu.
FUNCTIONS
NMS software (Novus Management System) is an advanced platform for managing video monitoring system. NMS can combine different standards of CCTV: Analog, AHD, IP, and at the same time is a software with a high degree of flexibility, finding its application in both small and large and distributed installations
Power over Ethernet - the technology allows you to power the IP camera directly from the recorder, without the need for additional power devices.
The Onvif standard allows for basic compatibility between devices from different manufacturers and brands. The camera + recorder set supporting the Onvif standard guarantees that the camera will be found, added, recorded and will transmit information about motion detection.
The video encoding standard, which is the successor to the H.264 standard, which allows to save up to 35% of the bandwidth.
| VIDEO | |
|---|---|
| Maximum Supported Camera Resolution | 3840x2160 |
| Compression | H.264, H.264+, H.265 |
| Monitor Output | Main (split screen, full screen, sequence): 1xVGA, 1xHDMI (4K UltraHD) (up to 2 monitors simultaneously) |
| Dualstreaming Support | Yes* |
| AUDIO | |
| Audio Output | 1x line-out (RCA) 1xHDMI |
| RECORDING | |
| Recording Speed | 240fps (8x30fps for 1280x720), 240fps (8x30fps for 1920x1080), 240fps (8x30fps for 2048x1536), 240fps (8x30fps for 2560x1440), 240fps (8x30fps for 3840x2160) |
| Stream Size | 80Mb/s in total from all cameras |
| Recording Mode | Time-lapse, triggered by: manual, alarm input, motion detection |
| Schedule | Individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility of combining individual recording modes |
| Prealarm/Postalarm | Up to 30 s/up to 180 s |
| DISPLAY | |
| Display Speed | 240fps (8x30fps)** |
| PLAYBACK | |
| Playback Speed | 240fps (8x30fps for 1280x720) **, 240fps (8x30fps for 1920x1080) **, 240fps (8x30fps for 2048x1536) **, 240fps (8x30fps for 2560x1440) **, 240fps (8x30fps for 3840x2160) ** |
| Recorded Data Search | By date/time, events |
| BACKUP | |
| Backup Methods | USB port (HDD or Flash memory), network |
| Backup File Format | AVI, DAT |
| STORAGE | |
| Internal Storage | Available mount: 1xHDD 3.5” 24/7 grade for recording* |
| Total Internal Capacity | 8TB |
| ALARM | |
| Internal Alarm Input/Output | 2/1 relay type |
| Motion Detection | Supports camera’s motion detection* |
| System Reaction to Alarm Events | Buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment |
| NETWORK | |
| Network Interface | 1xEthernet - RJ-45 interface, 10/100Mbit/s 8xEthernet PoE - RJ-45 interface, 10/10 Mbit/s |
| Network Protocols Support | HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP |
| ONVIF Protocol Support | Profile S (ONVIF 2.2 or higher) |
| PC/MAC Software | NMS, Internet Explorer, Firefox, Chrome, Opera/Safari |
| Mobile applications | RealViewPro (iPhone, Android) |
| Number of Simultaneous Connections | Up to 2 clients |
| Bandwidth | 80Mb/s in total to all client workstations |
| PTZ | |
| PTZ Functions | Pan/tilt/zoom, preset commands* |
| AUXILIARY INTERFACES | |
| USB Ports | 2xUSB 2.0, |
| OPERATING SYSTEM | |
| Operating System | Linux |
| Operation Mode | Triplex |
| OSD | Languages: Polish, English, others |
| Control | PC mouse (in-set included), network |
| System Diagnostic | Automatic control of: HDDs, network, camera connection loss |
| Security | Password protection |
| INSTALLATION PARAMETERS | |

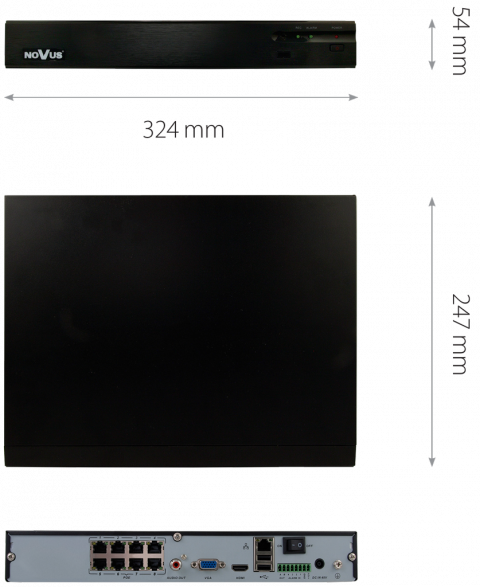

| Dimensions (mm) | 324(W)x54(H)x247(D) |
| Weight | 1.2kg |
| Power Supply | 48VDC (100 ~ 240VAC/48VDC PSU in-set included) |
| Power Consumption | 20W (with 1HDD) + 76W PoE |
| Operating Temperature | -10°C ~ 55°C |
** Available with dual streaming mode.
*** List of compatible HDD models and maximum of their capacities is available in section DOWNLOADABLE FILES.

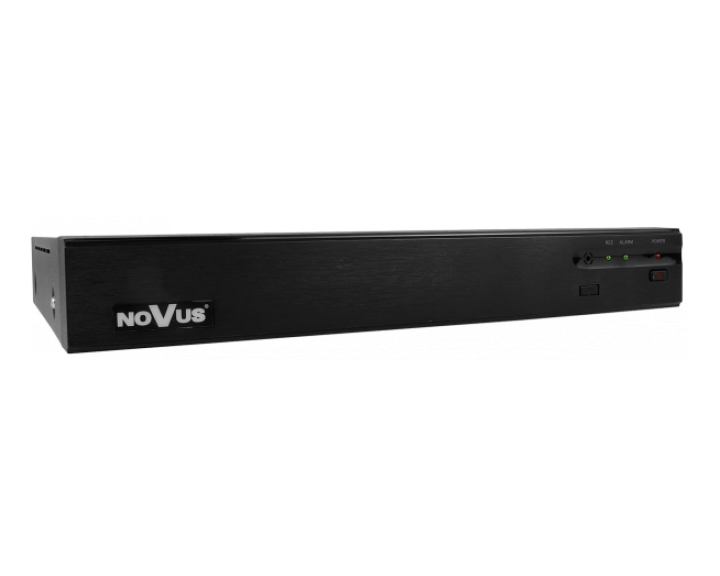

NVR-7708P8-H1
8 Canal Recorder, 8MP, PoE, 200/240bps, 80MB
PRODUCT SHEET
- Manufacturer: NoVus
- Product Code: 19-391
- In Stock 1pcs
- Available 1pcs
Tags: NVR-7708P8-H1
