128 Canal Recorder, 8MP, 3200/3840fps, 384Mb


KEY FEATURES

  • Input: 128 Channel (Via Network).
  • Output: HDMI(4K) x 2 dual display mode.
  • Recording resolution - up to 8 Megapixels.
  • 3U Case.
  • 16 HDD - up to 8TB Each-Hot Swap.
  • RAID Support.
  • Audio In/Out.
  • Alarm In/Out.
  • 2x1000Mbps Network.


FUNCTIONS

Ossia OS 1.4.6 New Features

Cloud Update


Starting from FW 1.4.6, Provision-ISR recorders have the
ability to self-update!

When a new update is available the Cloud Update icon
turns RED!

All you have to do is to approve the update locally or
through the app!

Remember, keeping the software updated is important
in many different ways: security, fine tuning and
performance improvement are just a few example!

  Analytics-New Settings Interface


The different analytics (Face Detection, LPR, DDA-Line crossing,
DDA-Sterile area, DDA-Object counting…) are now included in
the same screen which makes it more simple to find.

- Standard analytics and Advanced analytics  are part of
the same interface.
- Every analytic function has its own section.
- Sections are available only when the camera
supports that specific analytic function.

Face Recognition And LPR Triggers


Enjoy the possibility to create multiple triggers for the
same camera!

Example:
- E-mail and push notification for group 1.
- Buzzer, alarm out, multi record for group 2.

Create a trigger for unmatched object!

Example:
Push notification+ email when an unrecognized vehicle
or person is detected.

New Playback Interface


Are you wondering what the new playback interface
can do for you?

You cannow
-  Add or replace cameras having a look at the
thumbnail preview.
- Get a preview window when pointing the mouse
on the time bar.
- Choose which events you want to appear in the
time-bar (Standard Analytics or Artificial intelligence events)

New Smart Search Interface


You can easily select your smart search mode among the
following options:
• Full screen mode
• Line Crossing
• Grid
• Quadrilateral

- A new “Face”  button allows you to choose a face and
start filtering accordingly.
- A new “Vehicle” button allows you to add, edit, and
search for a specific license plate in one click!


SPECIFICATIONS
Channels

128

PoE

-

Video Output

HDMI1: (4K,1080P,1280x1024)
HDMI2+VGA: (1080P,1280x1024
64CH Per Monitor

Max. Recording

128CH 8MP Real Time

Video Compression

H264-H265

Alarms

In: 8 + Depends On Camera
Out: 4 + Depends On Camera

Audio

In: 1 RCA + Depends On Camera
Out: 1 RCA + Depends On Camera

Playback

16CH

Backup Format

AVI/DAT

Browsers

Chrome/Edge/Safari/Firefox plug-in free browsing,
Ossia VMS Software, Provision Cam2 Mobile App

OS

MacOS, Windows Vista 7/8/10

VMS

Yes

Video Analytics

With IPC Camera

APP Smart-phone/Tablet

ProvisionCam2 (Android-iOS)

Users Connections

10 Simultaneously

Hard Disk

16 SATA (8TB Each) With Smart Management
2 E-Sata Port. RAID Support

Cloud Connection

APP & WEB Page

Bandwidth (IN/OUT)

384Mbps In / 384Mbps Out

Ethernet

2xRJ45 (1000Mbps)

Power Supply

AC100/240V

Dimensions

440x485x148mm

Write a review

Please login or register to review

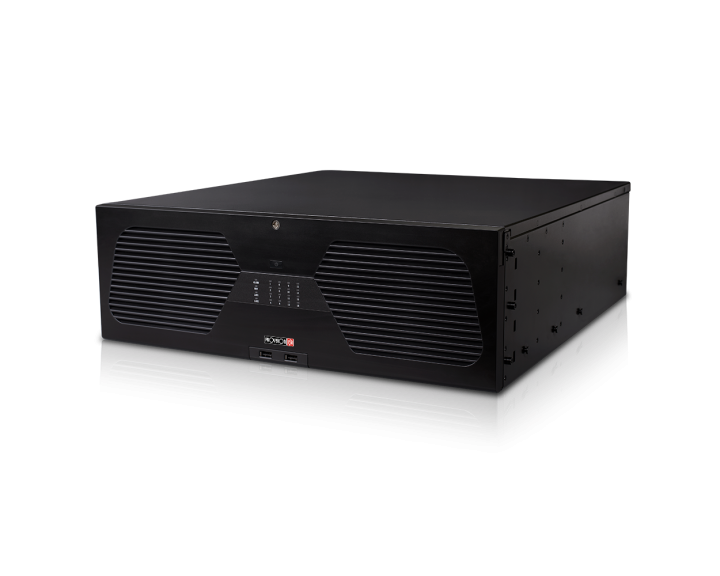

NVR8-128RT(3U)

128 Canal Recorder, 8MP, 3200/3840fps, 384Mb


PRODUCT SHEET

  • Manufacturer: Provision ISR
  • Product Code: 22-072
  • EAN: 0619317408869
  • In Stock 0pcs Pre-Order!
  • Available 0pcs
