32 Channels Recorder 12MP, with 16xPoE,

Check Point Protection, Face recognition

and NDAA Copliance, 800/960bps, 192Mbps.

KEY FEATURES

Input: 16 Channel (Via Network) + 16 Channel (Via PoE Network).
Output: HDMI/HDMI(4K)/1080P/1280x1024/1024x768.
Recording resolution - up to 12 Megapixels.
2U Case.
8 HDD - up to 80TB (10TB/HDD).
Audio In/Out.
16 Alarm In.
4 Alarm Out.
2x1000Mbps Network.

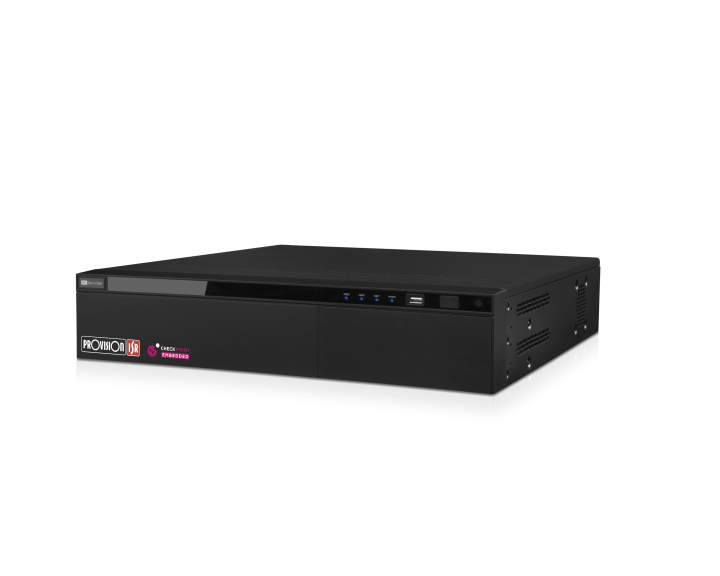

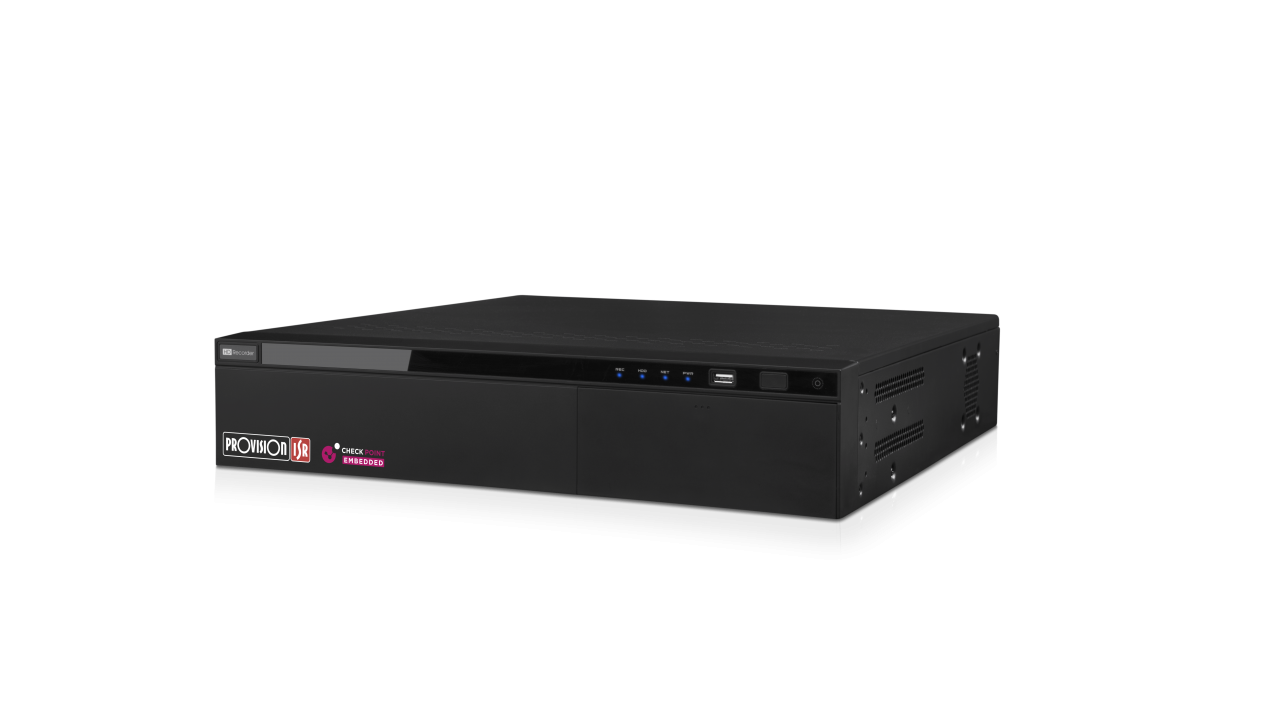

Provision-ISR NVR12-32800FN-16P(2U) is a high-performance network video recorder with an integrated
16-channel PoE switch for high-definition surveillance. The device features 16 alarm inputs + 4 alarm
outputs and supports Face Recognition and Advanced Video Analitycs (DDA2). This easy-to-install solution
is suitable for big-sized installations (up to 32 channels) and provides everything you need for a trouble
free CCTV project.
This model complies with NDAA demands and ensures that your devices are cyber-protected round
the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat
prevention layer against the common attack vectors at runtime.

Link To Video Manual All Chapters

SPECIFICATIONS
Cyber Protection
General	Quantum IoT Nano agent by Check Point™
Protection Methods	Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection
Video
Input	16 Channel (Via Network) + 16 Channel (Via PoE Network)
Output	HDMI: (4K 30/60Hz, 1080P, 1280x1024) HDMI2+VGA: (1080P, 1280x1024) 32CH Per Monitor
View Mode	Independent, Up to 32ch on monitor1 + 9ch on monitor 2 *Under Advanced Face Recognition Mode: Up to 24ch on monitor 1
Decoding Format	H.265/H.265+/H.265S/H.264
Fish-Eye Dewarp	Yes
Decoding Capabilities	1Ch-12MP; 4Ch-2MP; 9-32Ch-D1
Audio
Input	1CH RCA (Linear, 1kΩ) + IPC inputs
Output	1CH RCA (2.0 Vp-p, 1kΩ) + IPC outputs
Compression	G.711A/G.711U
Two Way Audio	Yes
Analytics
Analytics Channels	32Ch (requires supporting IPC)
Supported Analytics	Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR. Advanced Face Recognition Mode: Supports up to 2 Non-AI IPC and performs face detection and recognition.
Face Recognition Rate	180 Faces per minute (All Channels)/3 Faces per second (Single Channel)
Bandwidth
Incoming	192Mbps
Outgoing	192Mbps
Record/Main Stream
Real-Time Recording	32CH 8MP real-time 12MP-20FPS
Record Type	Video/Video+Audio
12MP	640FPS (NTSC)/640FPS (PAL)
8MP	960FPS (NTSC)/800FPS (PAL)
5MP and lower	960FPS (NTSC)/800FPS (PAL)
Master stream over network	Up to 32CH@Recording resolution
Record/Remote App
Resolution	Depends on IPC
Sub-Streams over Network	Up to Outgoing Bandwidth Capacity
Recording Modes	Schedule, Manual, Motion, Sensor, Analytics, POS and all combinations
User Access	128 Users online with Professional Authority Management
Mobile App	Provision Cam2 for iOS/Android
PC/Mac Software	Ossia VMS Standard/Enterprise
Plug-in free Web-Browser	Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View/Playback)
Plug-in based Web-Browser	Internet Exporer
Playback
Local Playback	16Ch
Remote Playback (Web, App, VMS)	32Ch on IE, 4Ch on H5
Search Mode	DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
Backup
USB	2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format	AVI (Unencrypted) / Private Format (Encrypted/Unencrypted)
Alarm
Input	16+IPC
Output	4+IPC
Storage
HDD	8
E-SATA	2
Max Capacity	80TB (Up to 10TB Each) Extern: Up to 10TB
RAID	-
PTZ
Connection	via Network
Supported Controls	Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485	Yes (C06 Keyboard Connection)
Network
Ethernet	2x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance/Dual Network Configuration
Protocols	TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF	Full Device Support (Profile T/G, ONVIF Version 20.12)
PoE
Ports	16xRJ45
Speed	10/100Mbps (10Mbps under CCTV mode)
Standard	PoE (IEEE802.3AF)
CCTV Mode	Yes (Up to 200m and 10Mbps bandwidth)
Total Power	150W (Avarage 9.3W per Channel)
Max. Power Output (Per Ch.)	~15W*
Others
Power Supply	AC100/240V
Power consumption (No HDD)	30W
Dimension	W445xD436xH90mm
Operation Temperature	0~50°C

*Max power output will be reduced depending on cable quality and distance
